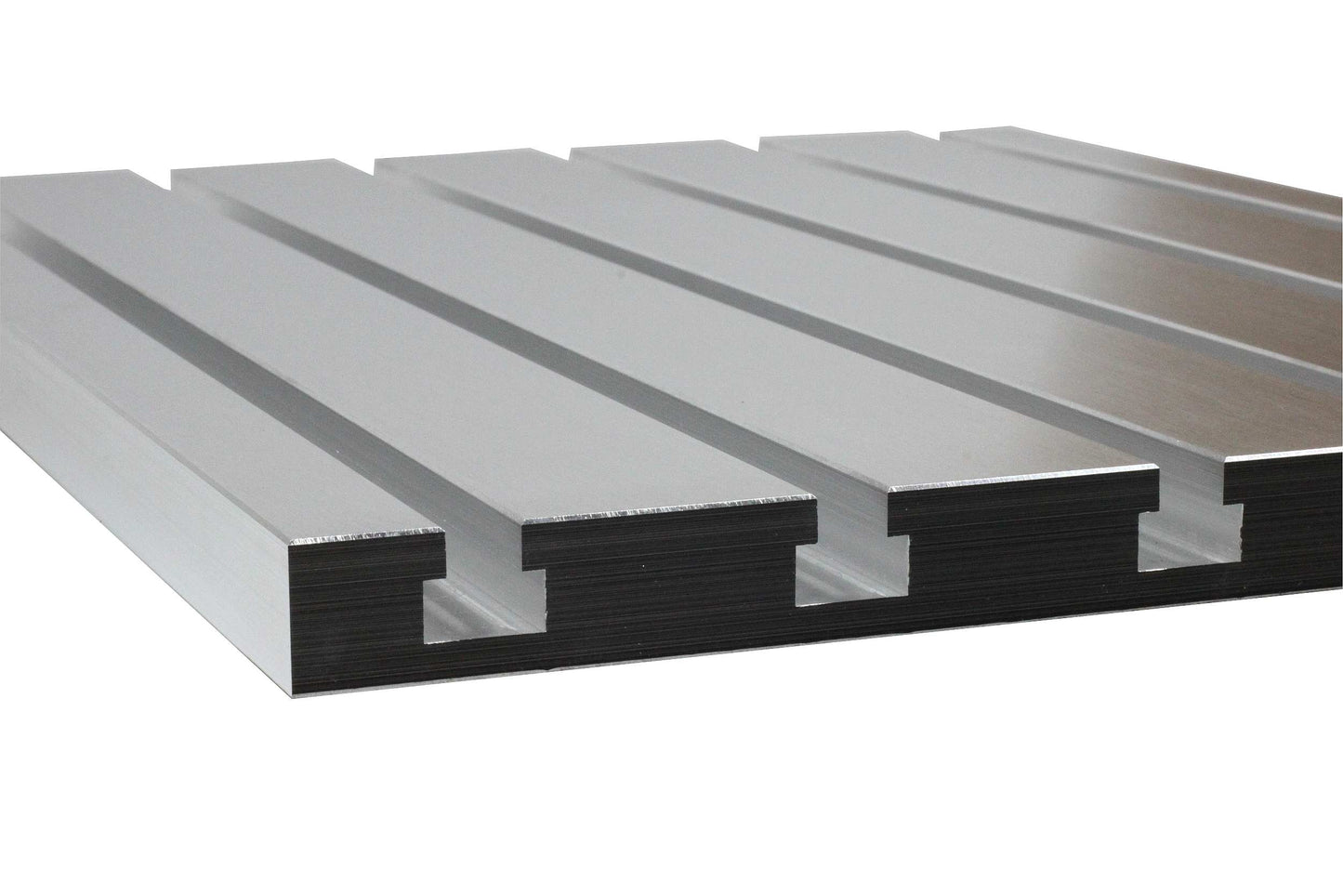

T-slot plate 4020
T-slot plate 4020
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
/
per
Couldn't load pickup availability
The T-slot plate is supplied with a smooth, closed bottom; that allows you to suck the plate on a vacuum table. For mounting on a machine table / frame holes will be drilled at a appropriate position. You can do this by yourself or take advantage of our service.
Technical Data:
Technical Data:
- made for T-Slot nuts according to DIN508
- Tolerance/Precision: +/- 0.01 mm /200 mm
- L= 400 mm
- B= 200 mm
- H= 20 mm
- H1= 6.5 mm
- H2= 8 mm
- D= 50 mm
- A= 10 mm
- C= 16 mm
