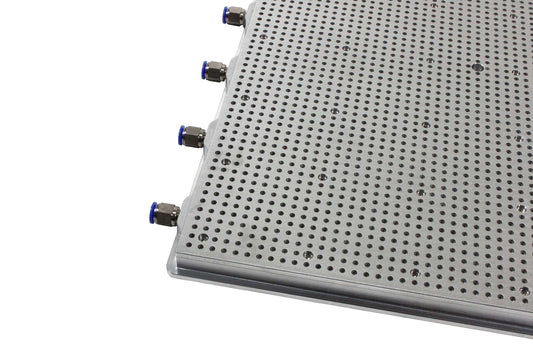

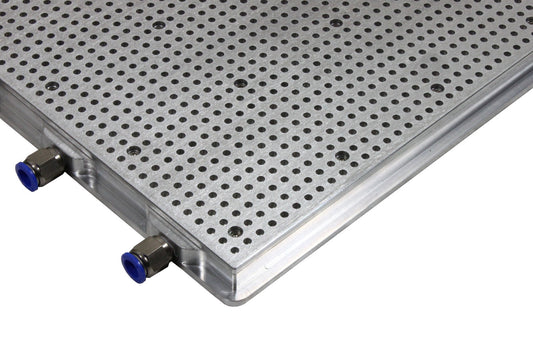

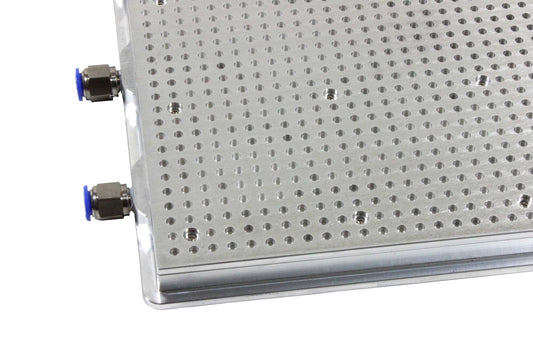

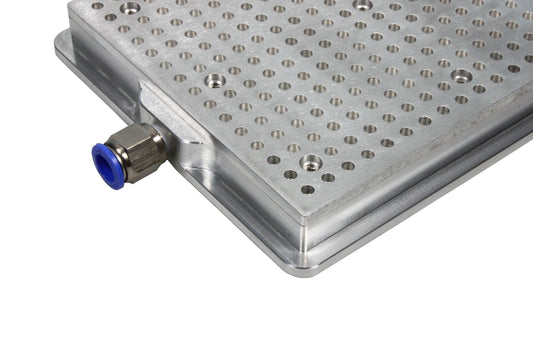

Collection: GAL Series Metalworking Vacuum Tables

Our GAL Series vacuum tables are manufactured from solid cast aluminium to deliver high stability, excellent clamping performance, and effective vibration damping for heavy-duty machining of light metals and steels.

The all-aluminium construction is coolant compatible and suitable for very heavy machining applications when used with Clamping Force Booster.

Entry-level vacuum table with no reference stocks or bushings.

Includes individually switchable vacuum chambers. Hole grid style vacuum table with 10 x 10 mm hole pattern. Suction hole diameter of 0.3 mm. Integrated M6 threaded grid, 100 x 100 mm spacing for mounting clamps, vises, stops, and accessories.
