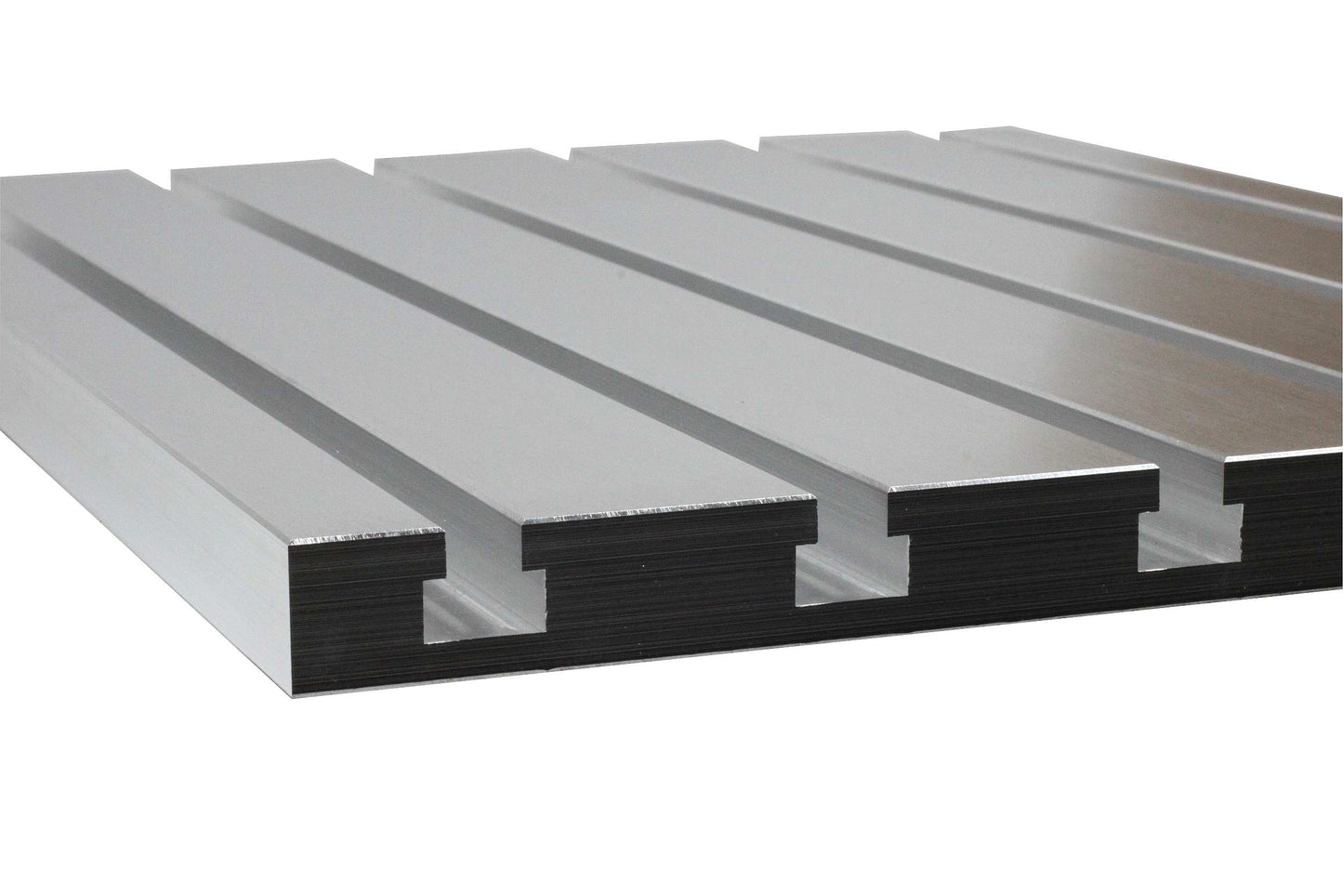

T-Slot plate 6035

The T-slot plate is supplied with a smooth, closed underside; this means that the plate can also be sucked onto a vacuum table. To attach it to a machine table/frame, simply drill holes at a suitable point. You have the flexibility to do this yourself, or you can use our service.

Technical data:

• Suitable for stones according to DIN 508
• Parallelism: +/- 0.01 mm /200 mm

• L= 600 mm
• B= 350 mm
• H= 20 mm
• H1= 7.5 mm
• H2= 8 mm
• D= 50 mm
• A= 10 mm
• C= 16 mm

We reserve the right to make technical changes
