Vacuum pad VP1212HPC Set with compressed air vacuum generator

The features at a glance:

• Complete set with 4 pads and compressed air vacuum generator.
• Extremely high holding force due to combination of vacuum and adhesive film
• Coolant compatible
• Pads can be connected in series
• Clamp small workpieces with high holding force

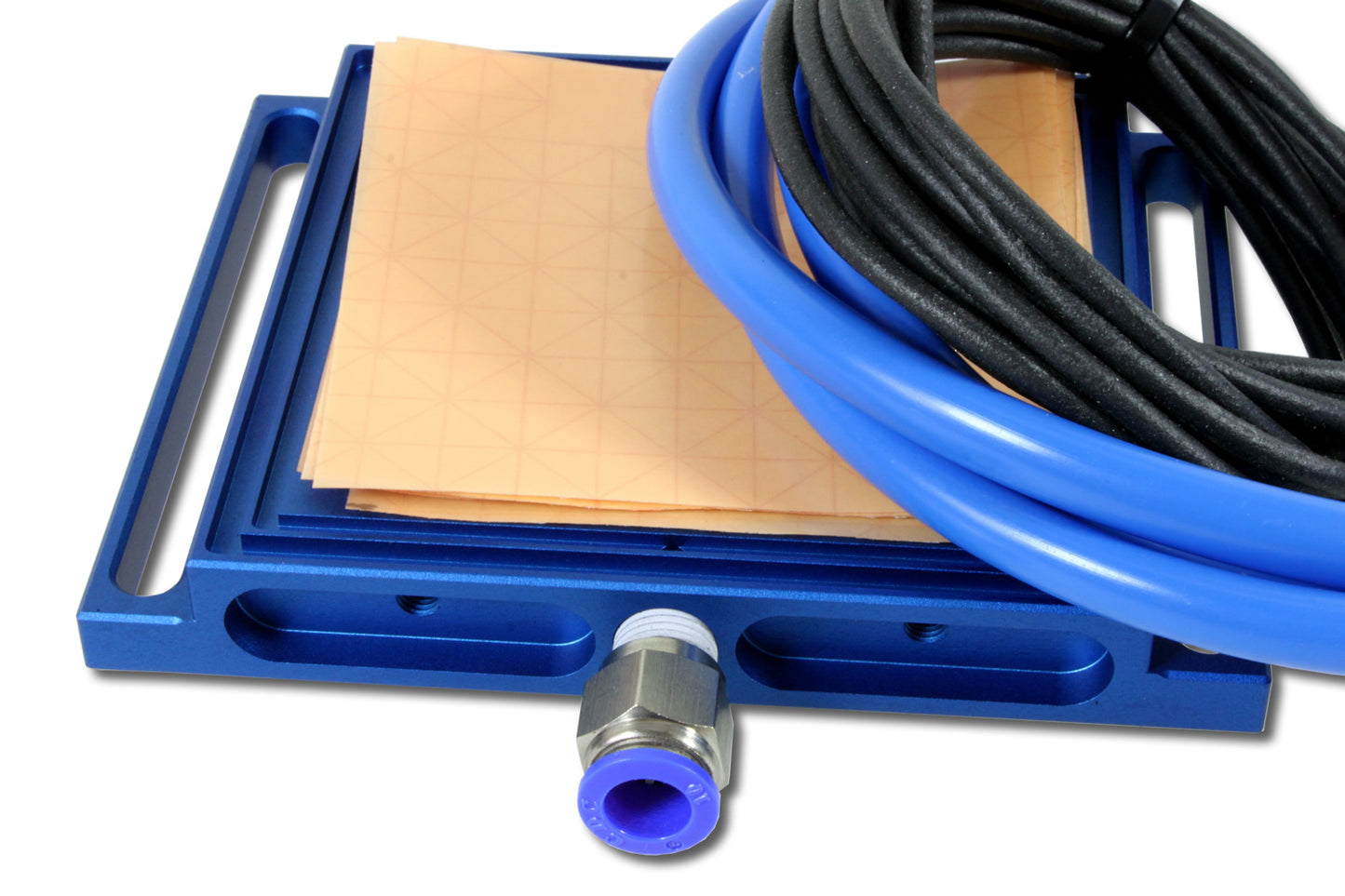

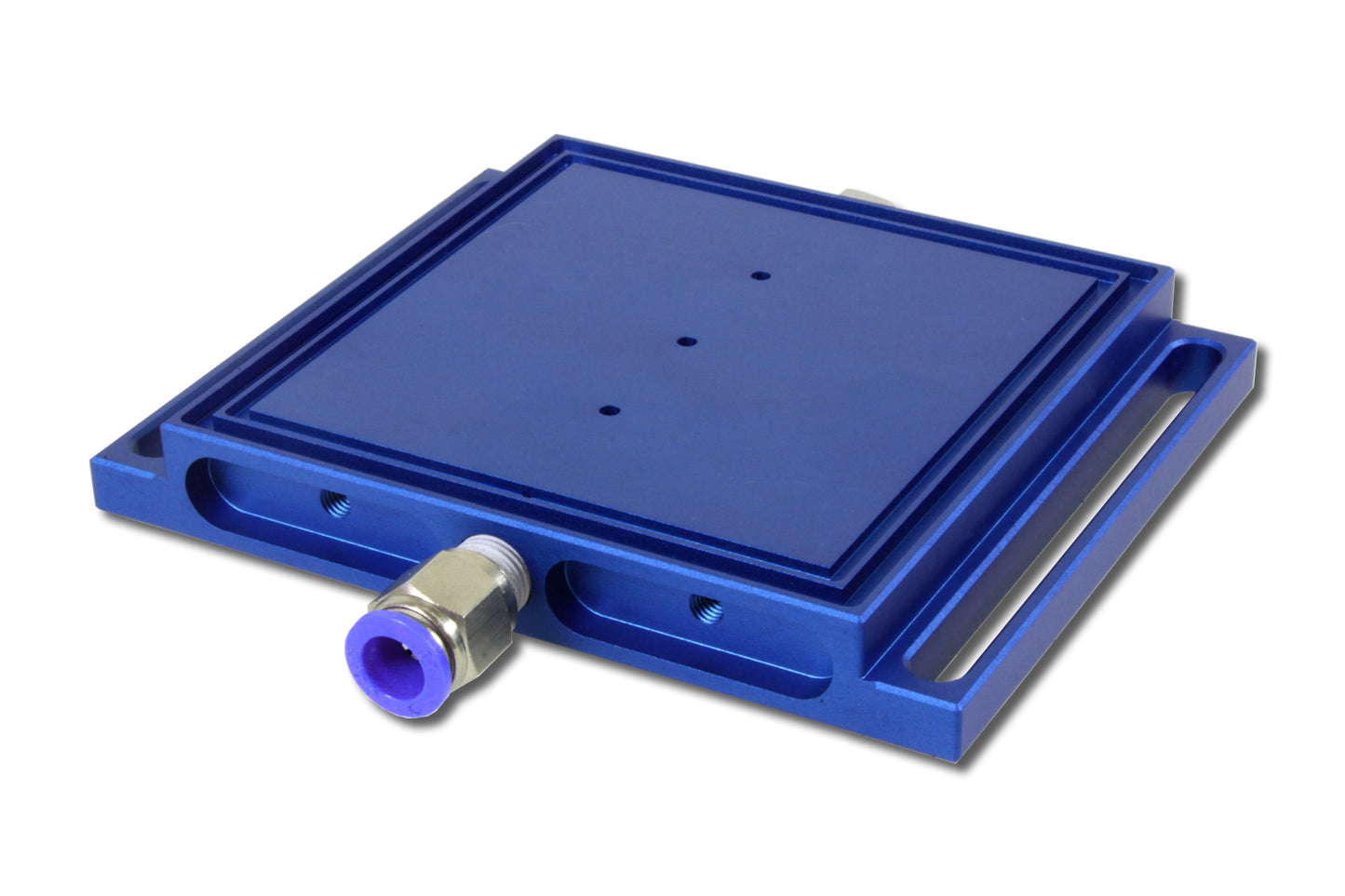

Technical data pad:

• Material: aluminium
• Outer dimensions: 150 x 120 x 20 mm
• Tube connection: 8 mm
• Moss gum grooves: 4 mm
• Anodized

Technical data vacuum generator:

• 93% vacuum (high differential pressure)
• 11 m³/h suction volume (high volume)
• Air consumption only 200 lpm
• Operating pressure 1-8 Bar
• Nominal operating pressure 6 Bar
• The supply air should be clean and dry

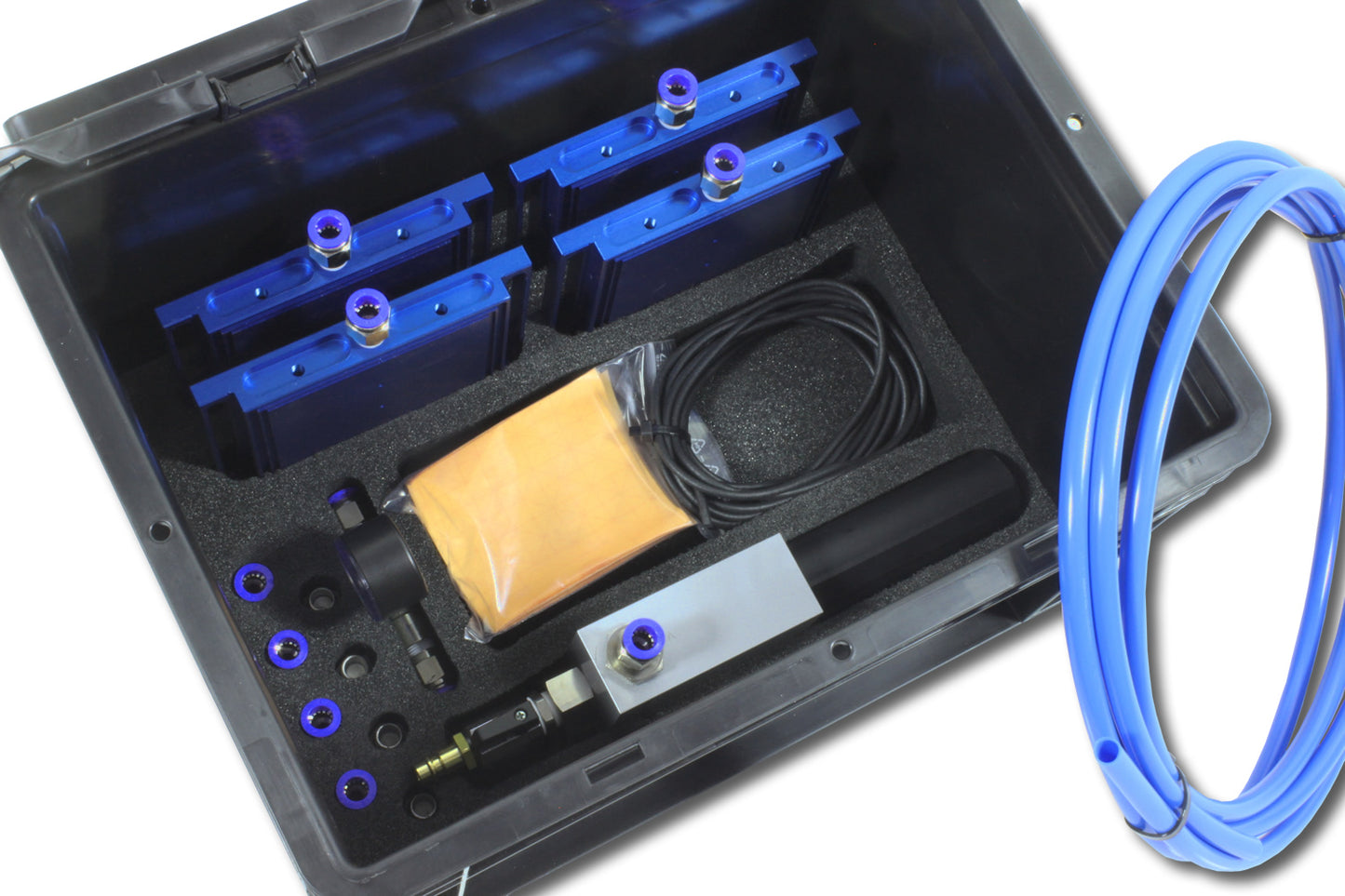

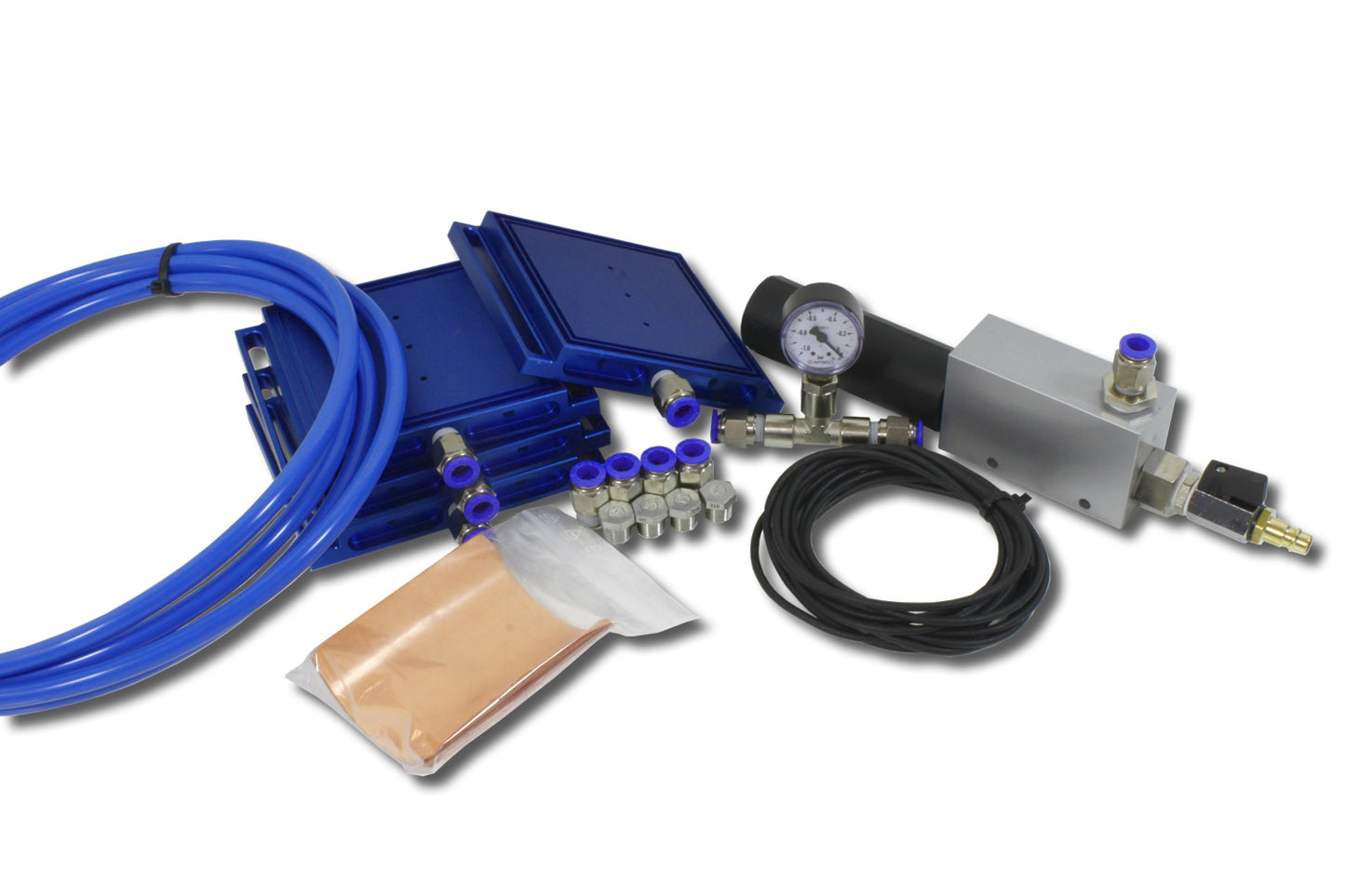

Scope of delivery:

• 4x vacuum pad VP1212HPC
• 1x vacuum generator VTVE3
• Moos rubber
• adhesive foil
• hose
