Vacuum pad VP1212VacEasy Set with compressed air vacuum generator

This set contains four 1212 VacEasy vacuum pads, a matching compressed air vacuum generator and many useful accessories. It is therefore ideally suited for entry into the world of vacuum clamping.

Technical data vacuum pad:

• Material: aluminium
• Dimensions: 120 x 120 x 20 mm
• 4x M6 steel threaded bushes on the upper side
• Moss rubber: 4 mm
• hose connection: 10 mm calibrated outside

Technical data vacuum generator VTVE3:

• 93% vacuum (high differential pressure)
• 11 m³/h suction volume (high volume)
• Air consumption only 200 lpm
• operating pressure 1-8 bar
• Nominal operating pressure 6 bar
• Supply air should be clean and dry

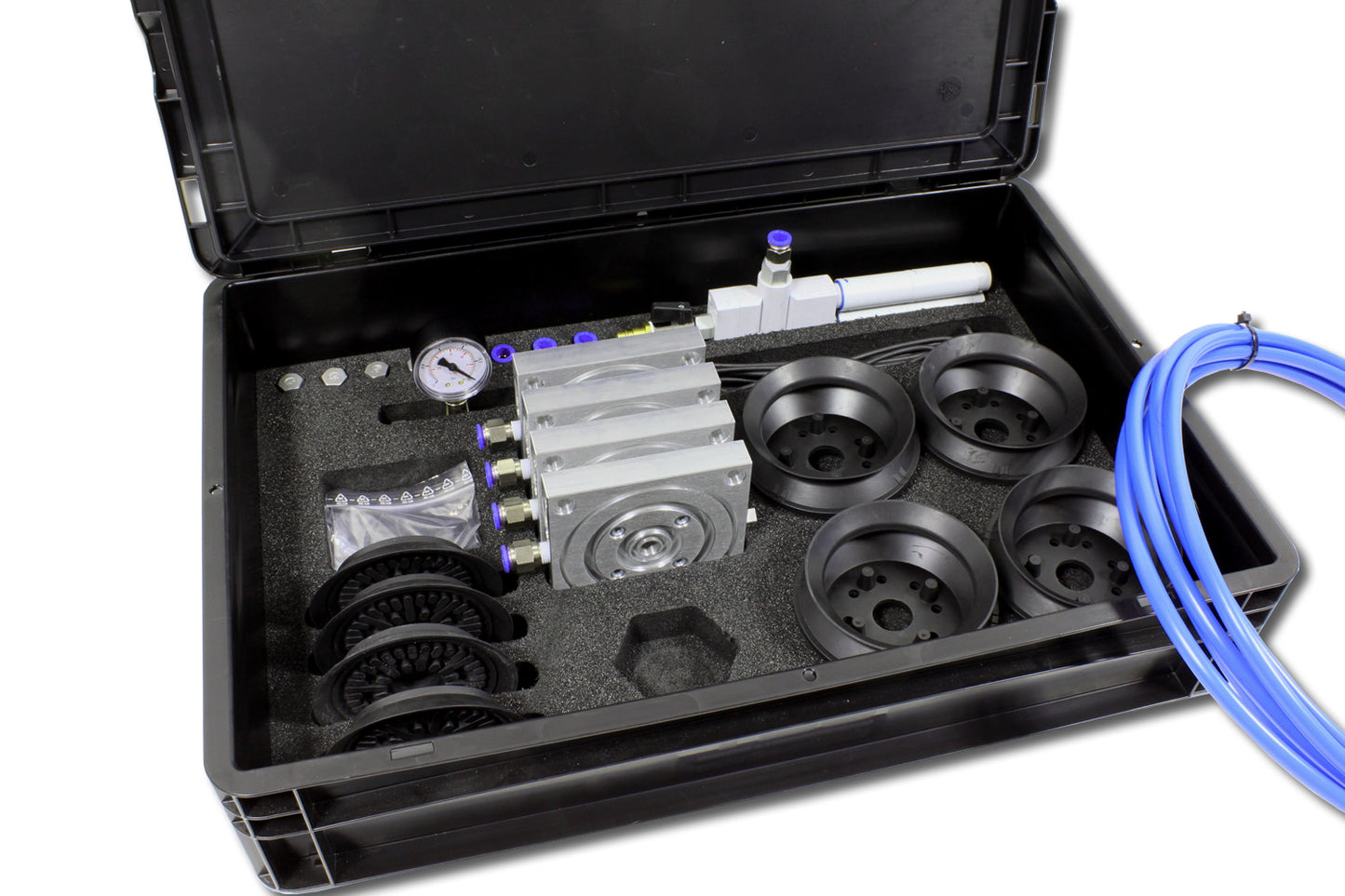

Scope of delivery:

• 4x vacuum pad 1212 VacEasy
• 1x compressed air vacuum generator VTVE3

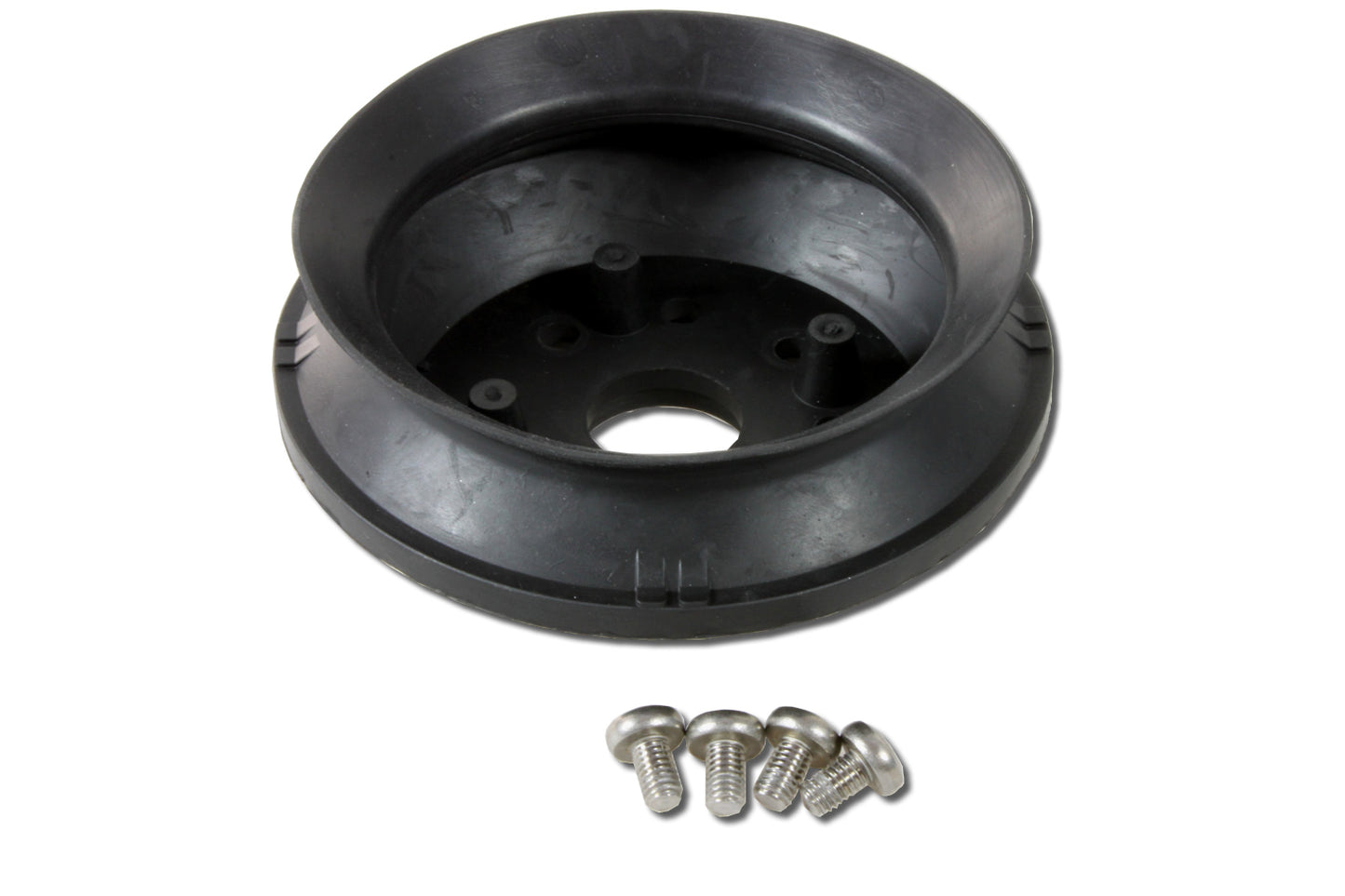

• 4x bellows suction cup for 1212 VacEasy

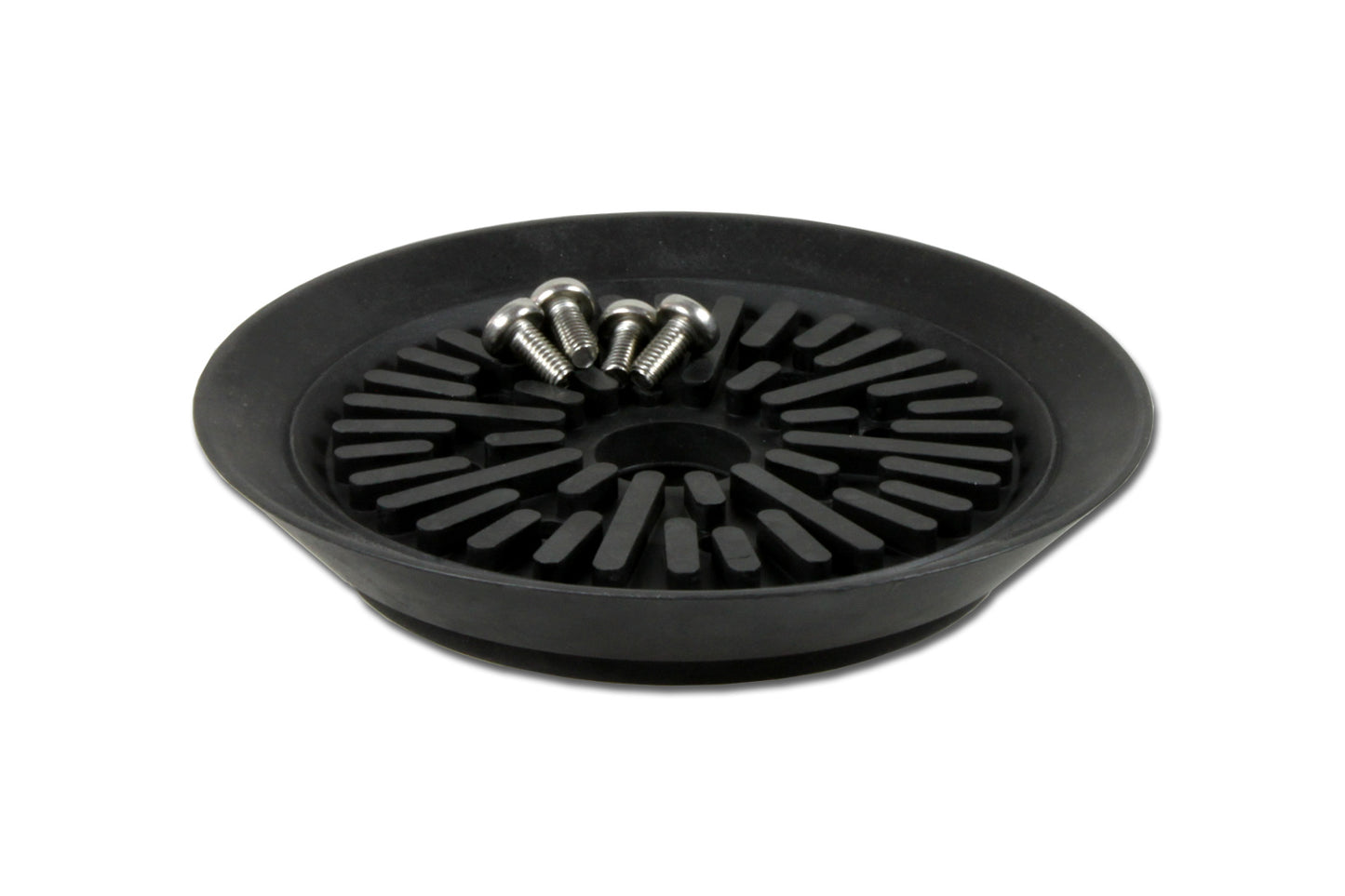

• 4x flat suction cup for 1212 VacEasy
• 1x pressure gauge
• 1 set of hoses
• 1 set of 4mm foam rubber cord
• connections and blind plugs
