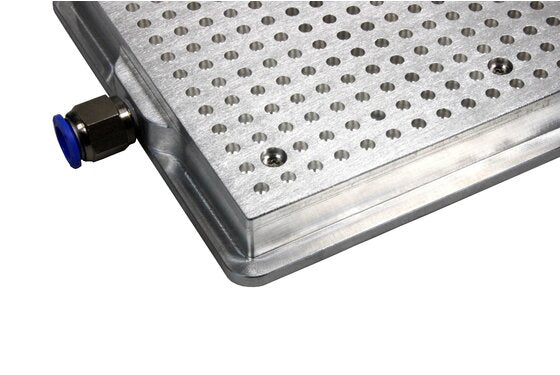

Vacuum table VT3015 GAL

Included in delivery:

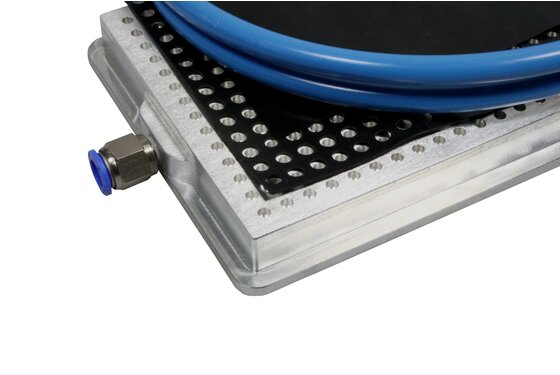

• Vacuum-clamping-unit VT3015GAL
• Connection-adaptor and hoses
• Rubber grid mat
• Rubber cover mat

Technical data:

• Material: Aluminium
• Measure: 331 x 180 mm
• Clamping area: 280 x 180 mm
• Height: 27 mm (1.06 inch)
• Drillings: 459 x 0,7-1 / 5mm / combination drillings
• Raster: 10 x 10 mm
• Connections: 9/12mm
• Trimming spare: 4 mm (0.16 inch)
• Adapter mat: Hole rubber
