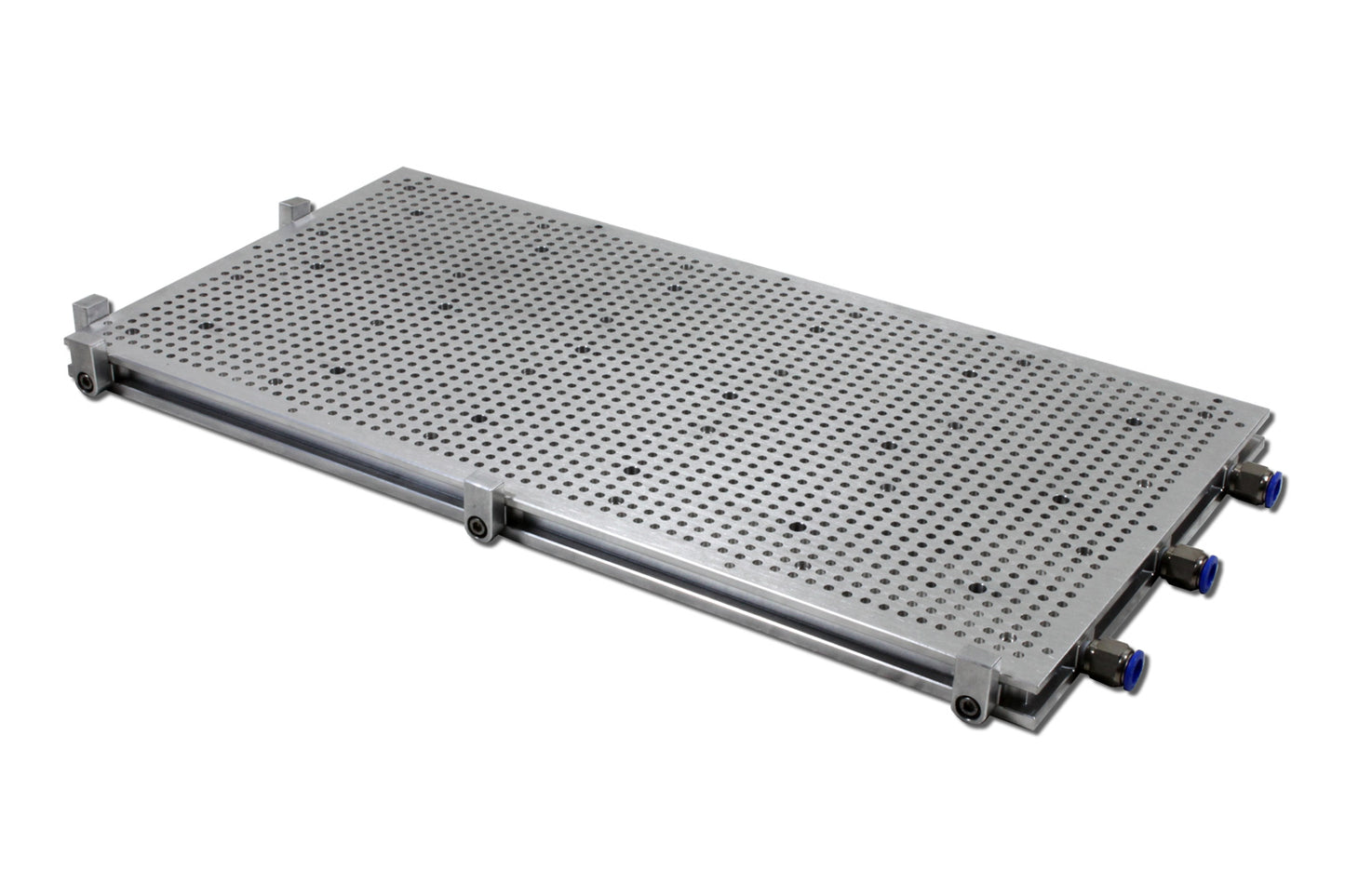

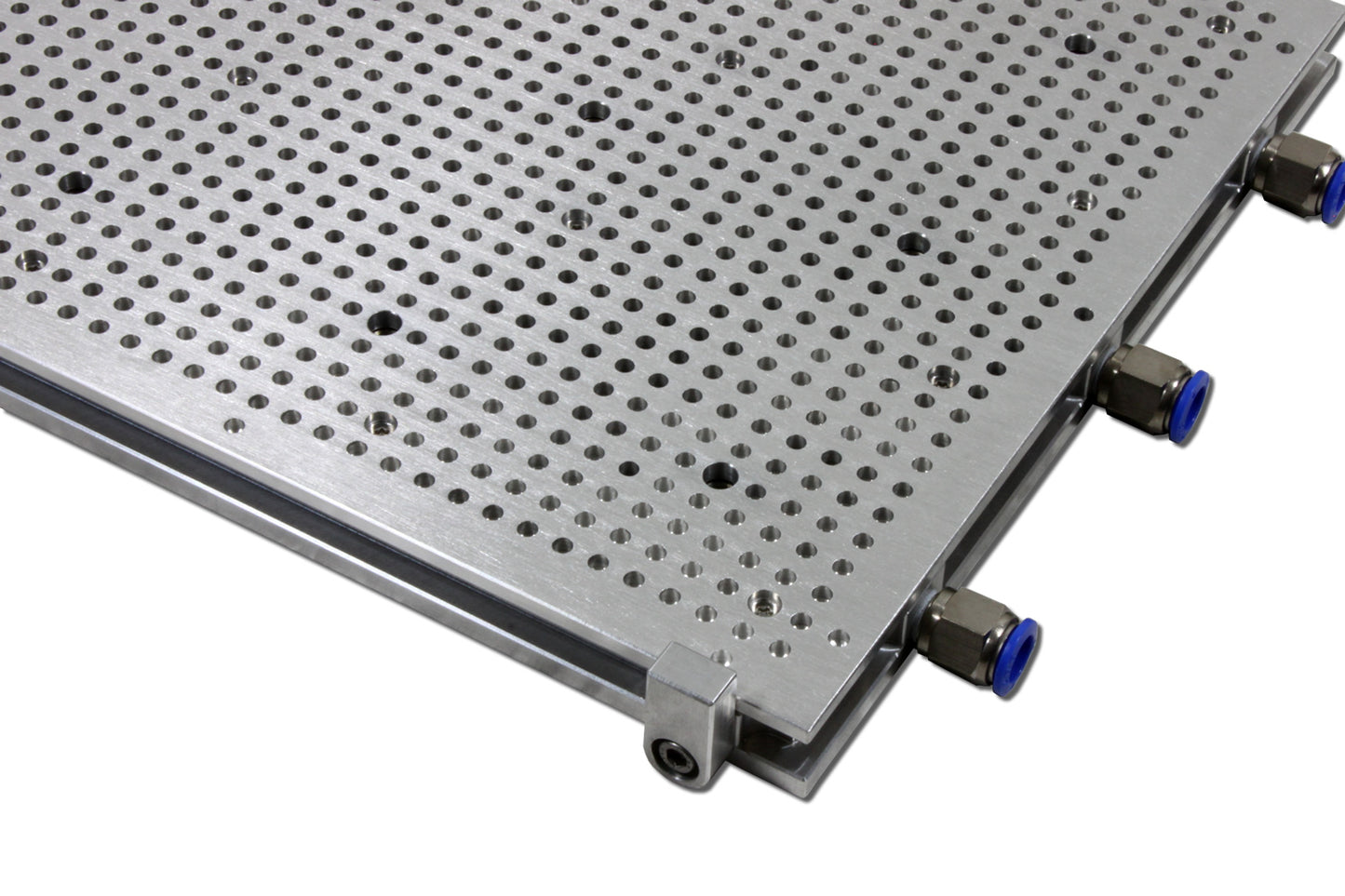

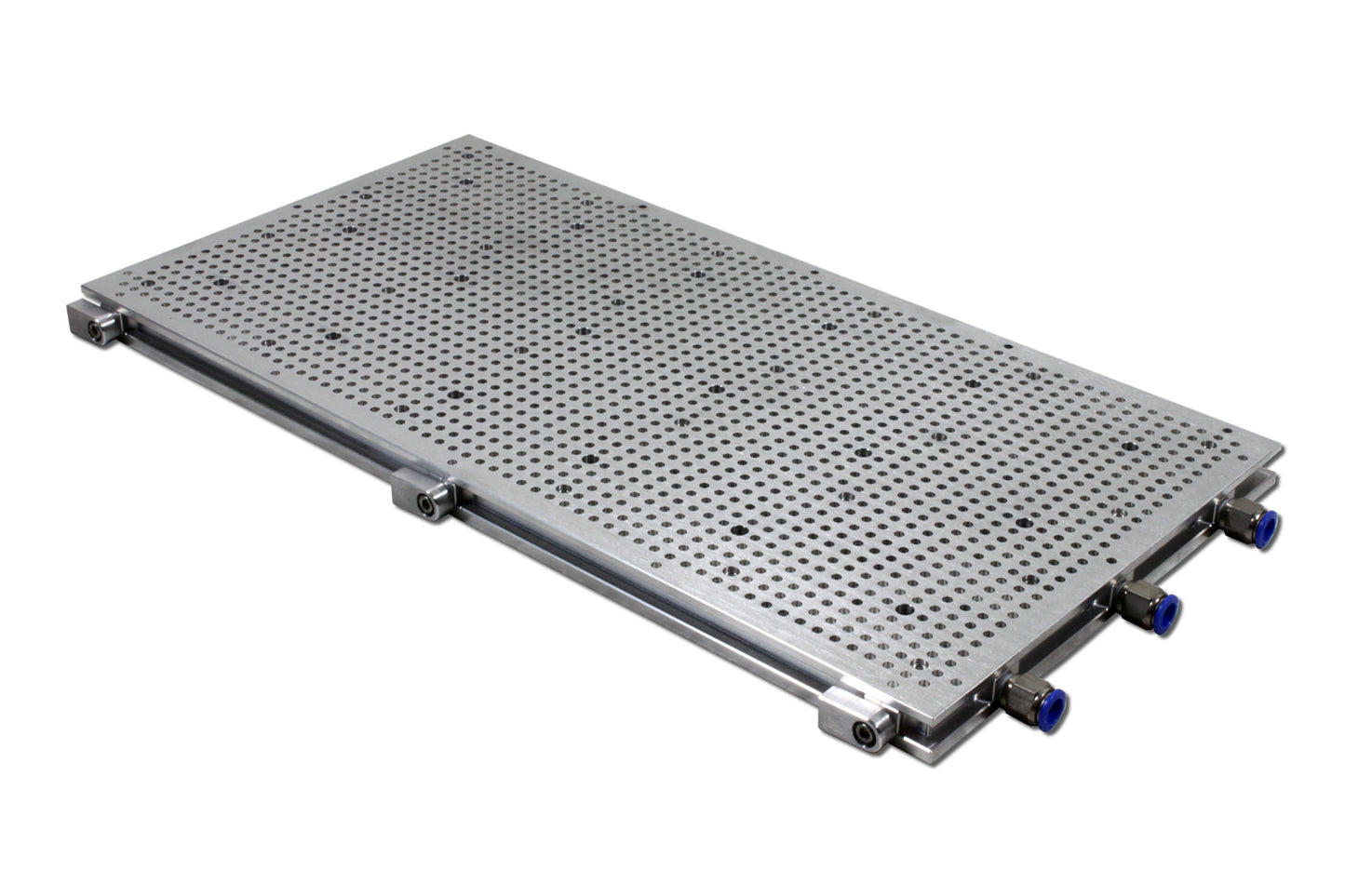

Vacuum table VT5030 GR

Technical data:

• Material: Aluminium

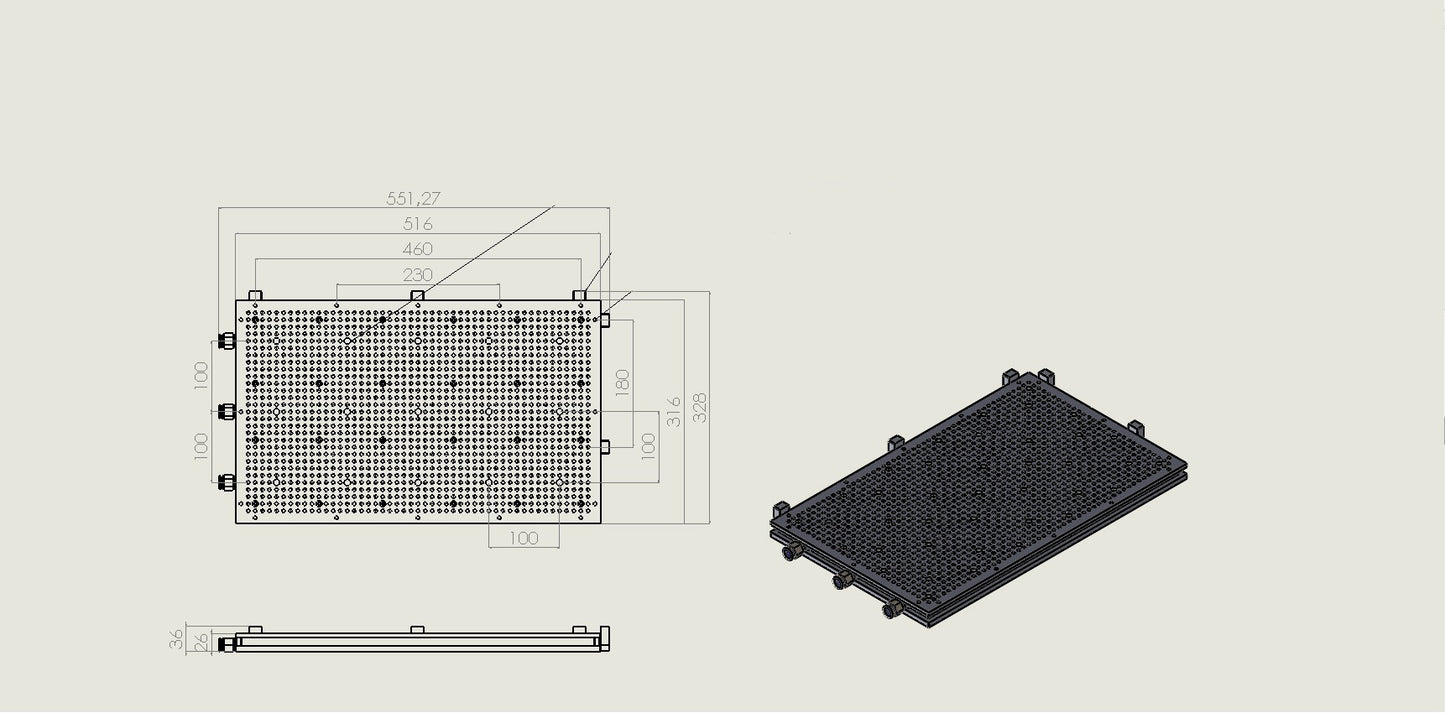

• Measure: 516 x 316 mm
• Clamping area: 516 x 316 mm

• Height: 27mm

• Drillings: 0,3 mm drill hole

• Grid: 10 x 10 mm
• Thread grid: 100 x 100 mm
• Number M8 bushings: 18

• Connections: 12 mm

• Trimming spare: 4 mm

• Adapter mat: Hole rubber

• surrounding clampingbase
• vacuum sectors: 3


Included in delivery:

• vaccum table VT5030 GR

• 1pcs vaccum distributor
• 1pcs hole ruber mat
• 1pcs cover mat
• 1set connection hose
• 4 pcs clamp
