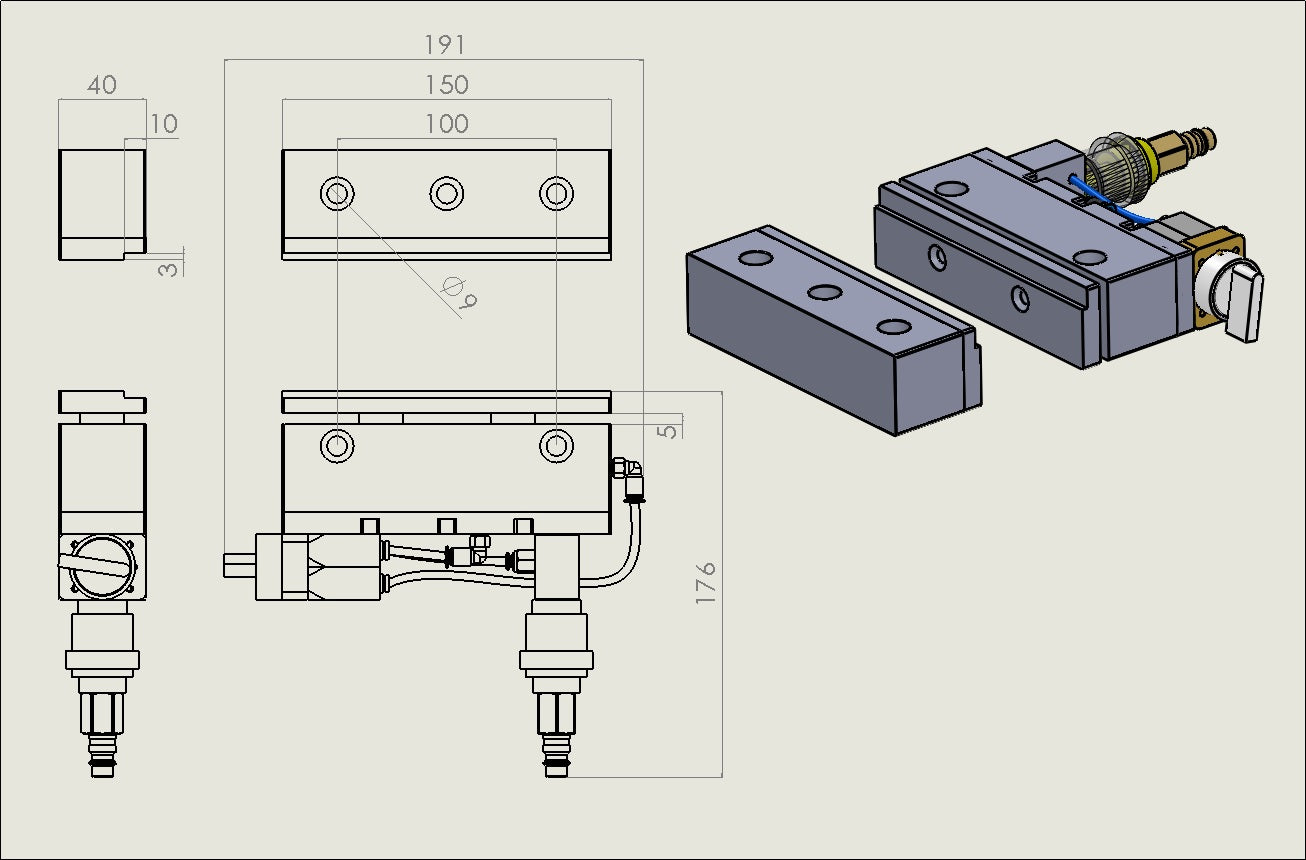

Pneumatic clamp PS-150-AL

• chuck jaw measure: 150 x 39.6 mm
• chuck jaw material: aluminium

• body material: cast alumium hard anodised

• needed preasure: 2 bar
• lift: 5 mm

• diameter clampholes: 9 mm
• double sided acting lift

• exchangeable chuck jaws
• with workpiece stop


Tonicity at:

• 2 bar: 726,6 N

• 4 bar: 1453,2 N

• 6 bar: 2179,8 N

• 8 bar: 2906,0 N

• 10 bar: 3633,0 N


• 1x Pneumatic clamp

• 1x counter jaw with workpiece stop

• 1x toolbox for easy storage
