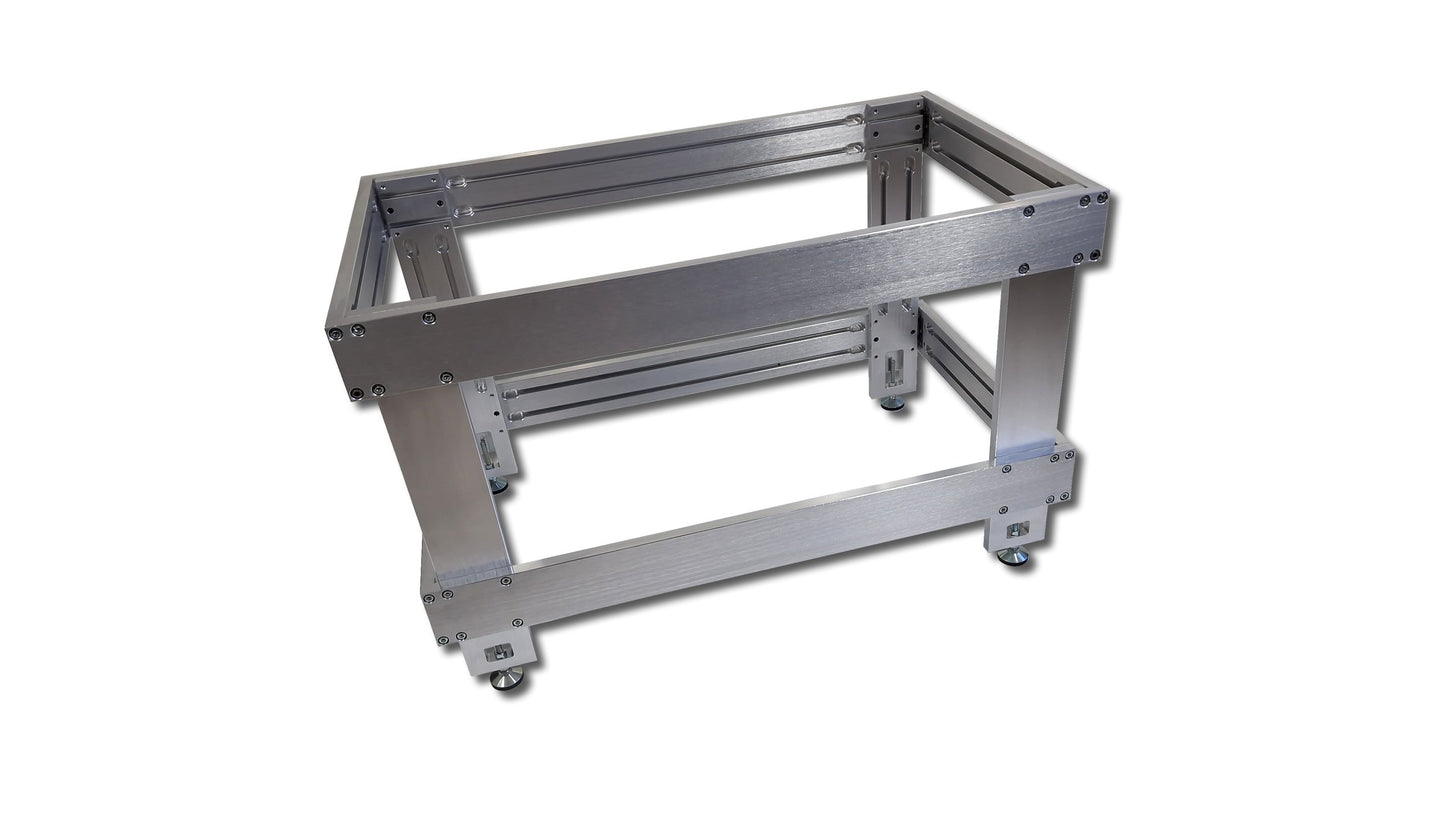

Precision frame 200x80cm without work surface

Our precision frames are made entirely of solid cast aluminium. To achieve the highest possible precision, our frames are not welded, but screwed and pinned. You can order the racks with different Work surfaces or order without work surface to realize your own setup.

In addition to the racks available here, we also offer customized racks up to 3500 x 2000 mm, also directly with various vacuum tables, T-slot plates made of aluminium or tool steel, threaded grid plates, heated vacuum tables, cooled vacuum tables, or with your very own setup that we manufacture for you according to your specifications.

The precision frame is shipped in assembled condition and is ready for immediate use upon receipt!

Technical data frame:

• Material: cast aluminium AlMg4.5Mn0.7 EN AW-5083
• Height: 832 - 892 mm
• Dimensions 2000 x 800 mm
• Load capacity with load distribution over the entire surface: 3000 Kg

Scope of delivery:

• 1x precision frame 200x80cm blank
