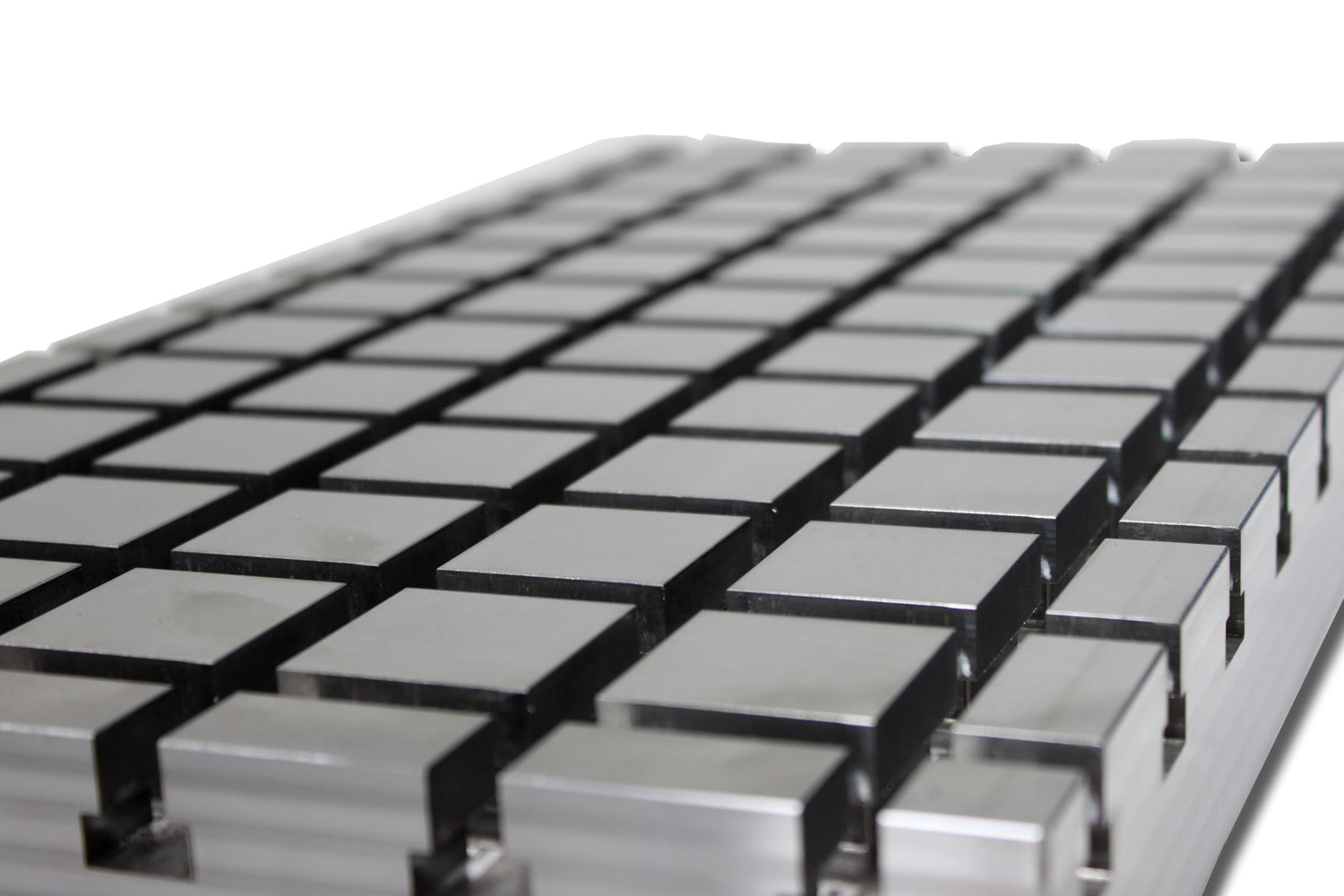

Steel T-slot plate 20060 "X-Block"

The T-slot plate is supplied with a smooth, closed bottom; that allows you to suck the plate on a vacuum table. For mounting on a machine table / frame holes will be drilled at a appropriate position. You can do this by yourself or take advantage of our service.

Technische Daten:

• made for T-Slot nuts according to DIN508
• Tolerance/Precision: +/- 0.01 mm /150 mm

• L= 2000 mm
• B= 600 mm
• H= 50 mm
• H1= 16 mm
• H2= 14 mm
• D= 50 mm
• A= 18 mm
• C= 32 mm
• E= 50 mm
