Steel T-slot plate 5030

Steel T-slot plate 5030

$0.00
$0.00
Sale Sold out
The T-slot plate is supplied with a smooth, closed bottom; that allows you to suck the plate on a vacuum table. For mounting on a machine table / frame holes will be drilled at a appropriate position. You can do this by yourself or take advantage of our service.

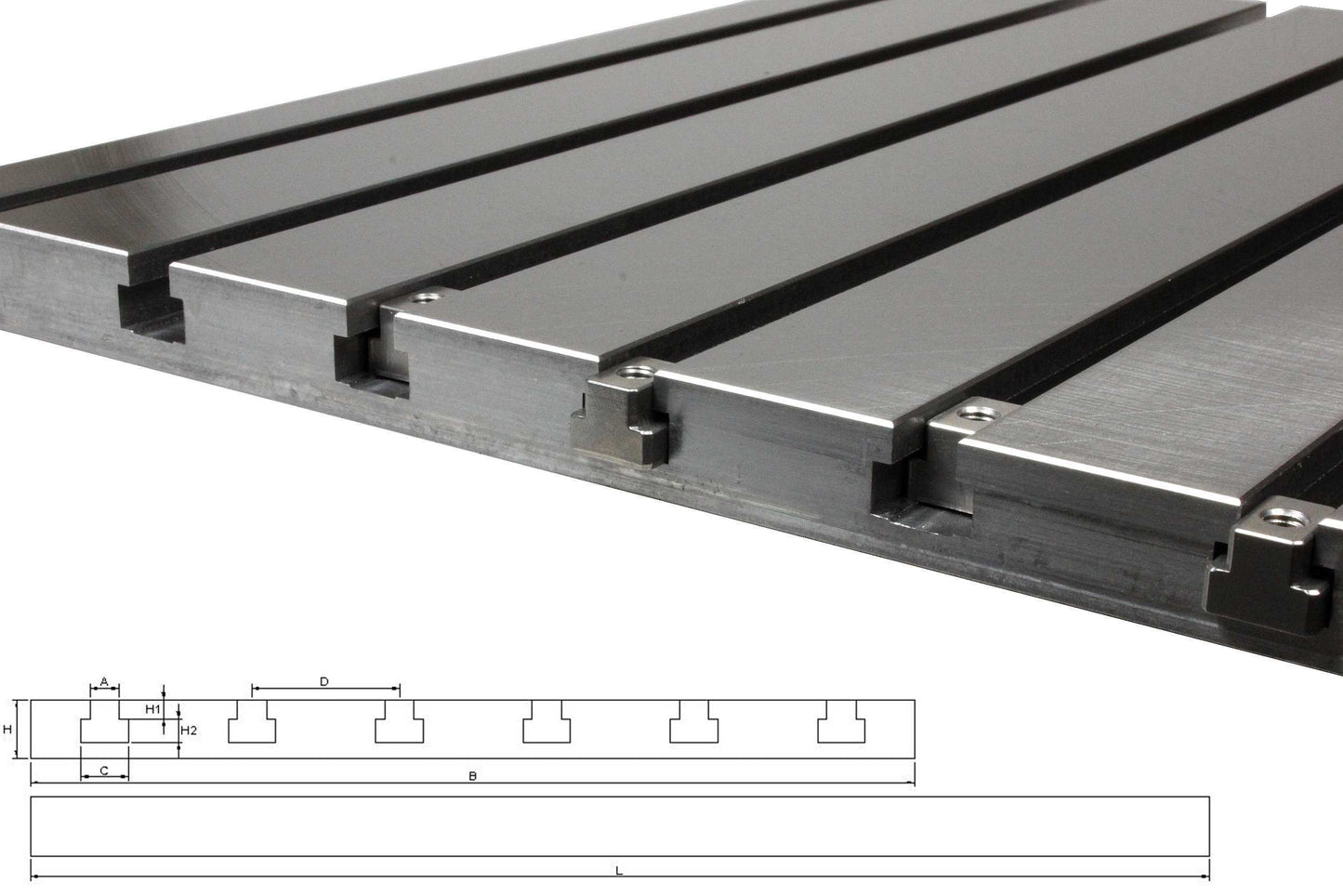

Technical Data:
  • made for T-Slot nuts according to DIN508
  • Tolerance/Precision: +/- 0.05 mm /200 mm
  • L= 500 mm
  • B= 300 mm
  • H= ca. 20 mm
  • H1= 6.5 mm
  • H2= 8 mm
  • D= 50 mm
  • A= 10 mm
  • C= 16 mm
