Vacuum pad VP66HPC Set with compressed air vacuum generator

The features at a glance:

• Complete set with 4 pads and compressed air vacuum generator.
• Extremely high holding force due to combination of vacuum and adhesive film
• Coolant compatible
• Pads can be connected in series
• Clamp small workpieces with high holding force

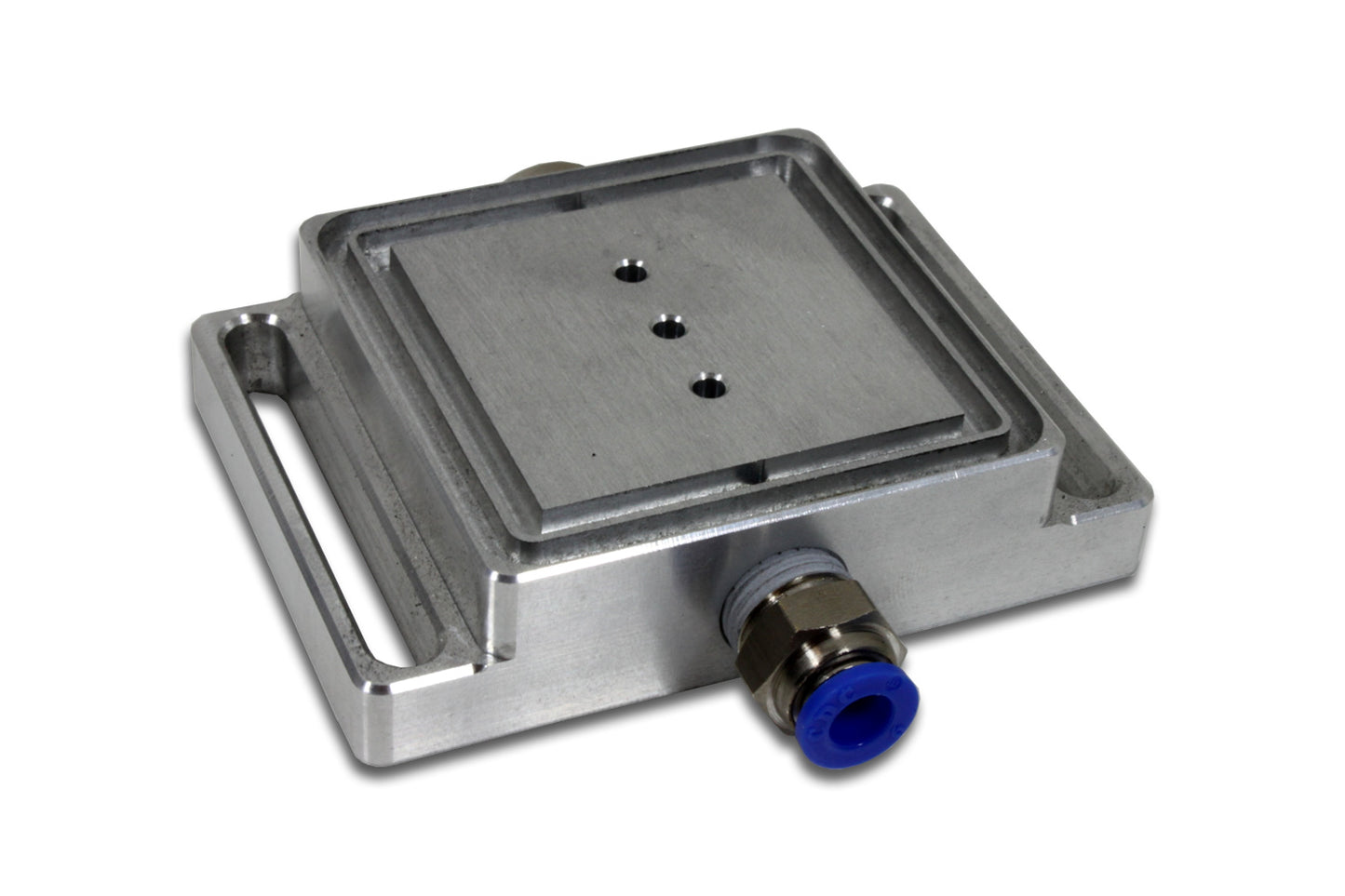

Technical data pad:

• Material: aluminium
• Outer dimensions: 84 x 60 x 20 mm
• Tube connection: 6 mm
• Moss gum grooves: 3 mm

Technical data vacuum generator:

• 88% vacuum (high differential pressure)
• 3 m³/h suction volume (relatively high volume)
• 80 lpm at 5bar (low consumption)
• Connection via a 6mm hose with external fitting
• The supply air should be clean and dry

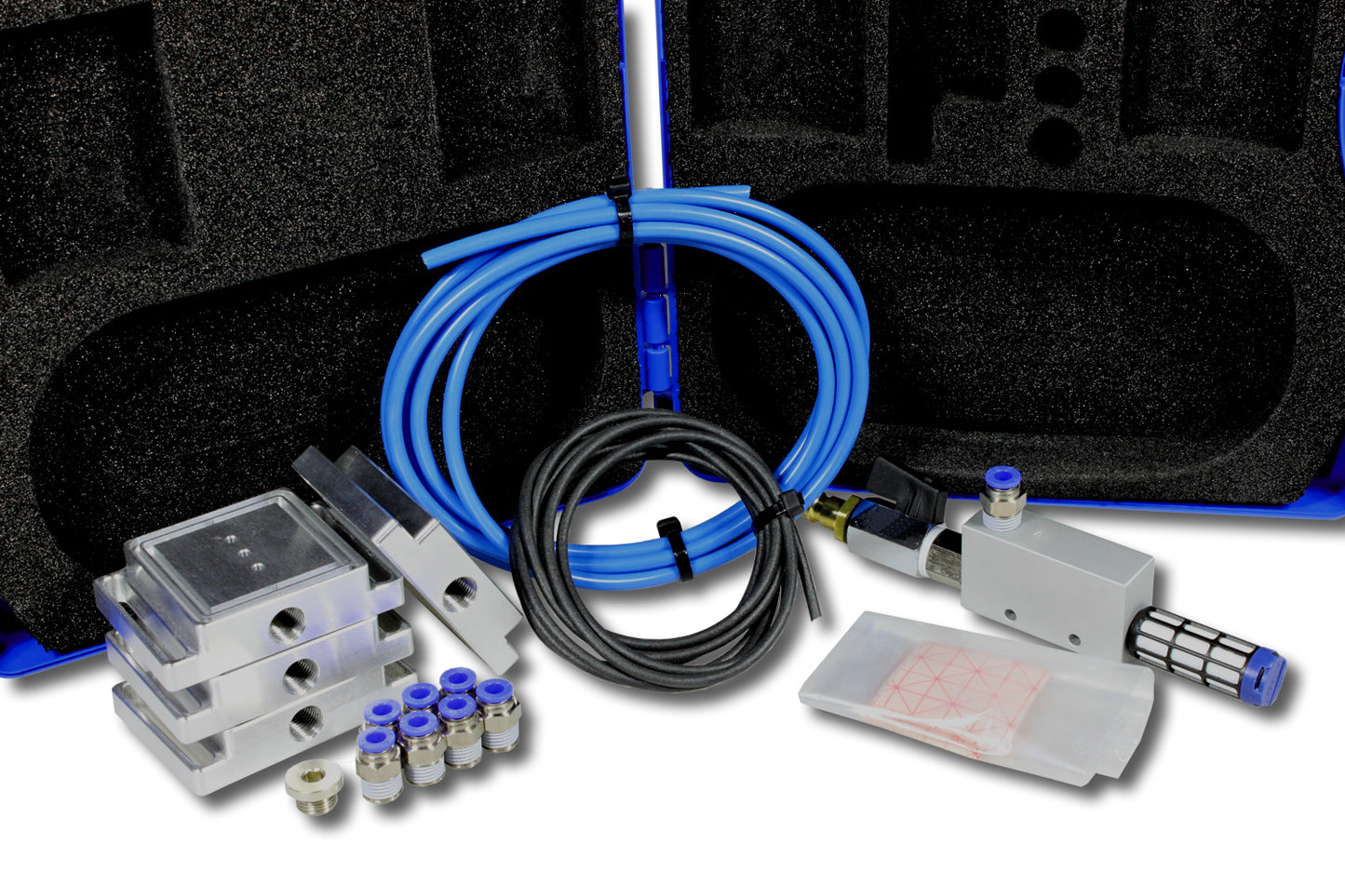

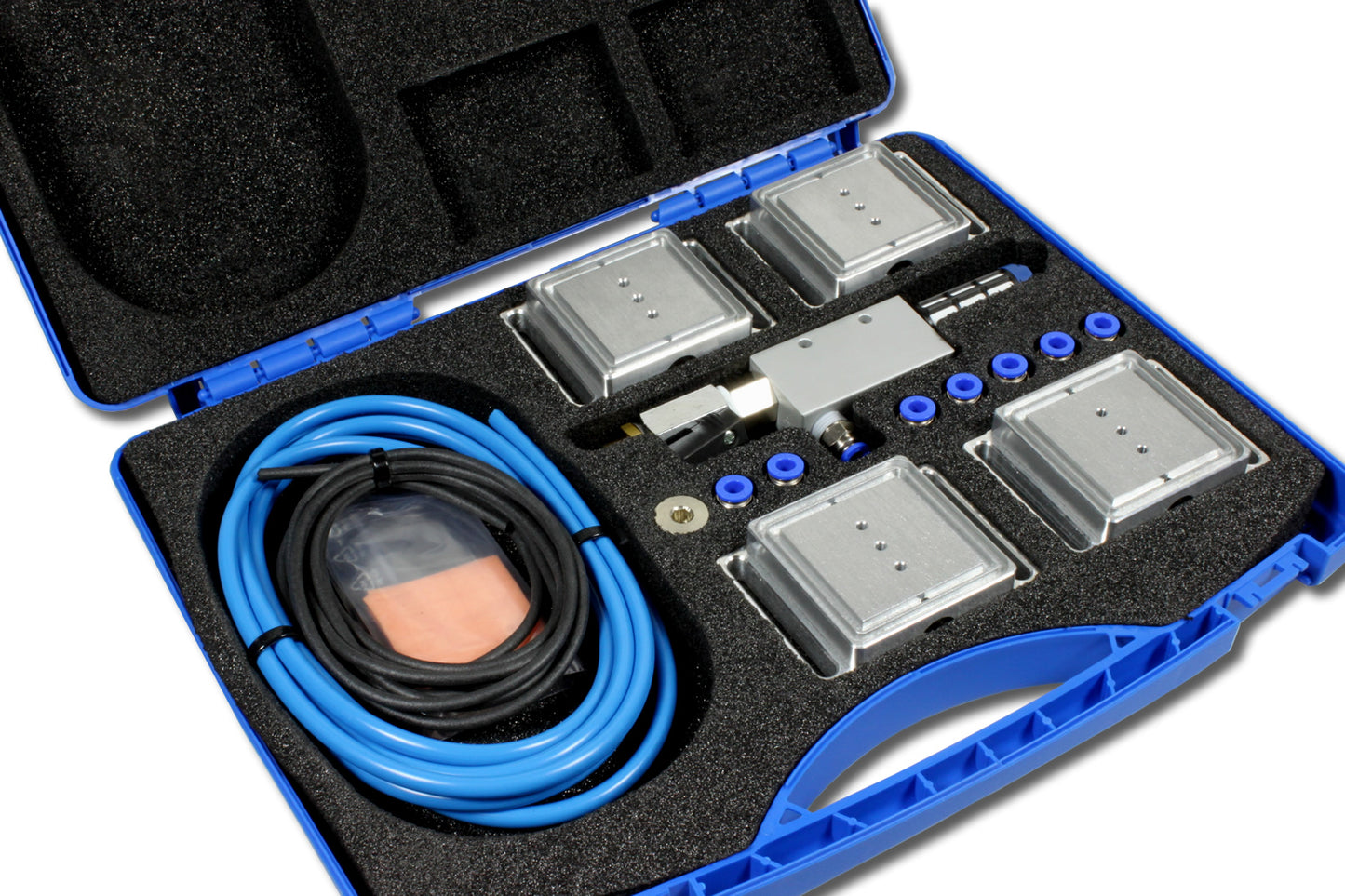

Scope of delivery:

• 4x vacuum pad VP66HPC
• 1x vacuum generator VTVE1.5
• Moss rubber
• adhesive foil
• hose
