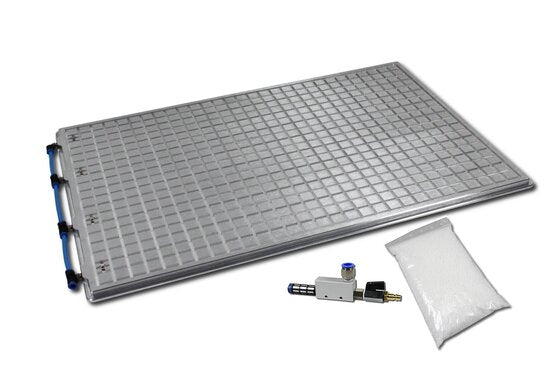

Vacuum table kit with VT6040R, VT-VE 1.5, 0,5 KG CFB

Overview of features:

• Clamp and mill workpieces quickly and easily.
• Face milled from both sides.
• Ready to use. Just mount, connect the vacuum and you´re ready to go.
• Coolant ready.
• Easy to use.

Technical data vacuum table:

• Dimensions: 612 x 412 x 12 mm
• Clamping Area: 600 x 400 mm
• Grid: 20 mm
• Vacuum points: 4
• Material: aluminium
• 6 mm surrounding clamping base

Technical Data VT-VE1.5:

• 93% vacuum 920 mbar

• 3,8 m³/air flow (high volume)
• 100 lpm consumption

• Best operating pressure 5 Bar
• The compressed air should be clean and dry
• Hose connection 6mm

Included in the price:

• 1x vacuum table VT6040R 1x Vacuum generator VT-VE 1.5

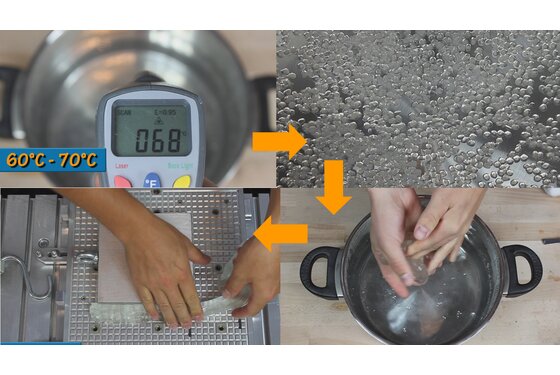

• 0,5 KG Clamping force booster
• 1x connection hose
• 1x neoprene sealing cord
• 1x PVC adapter mat
