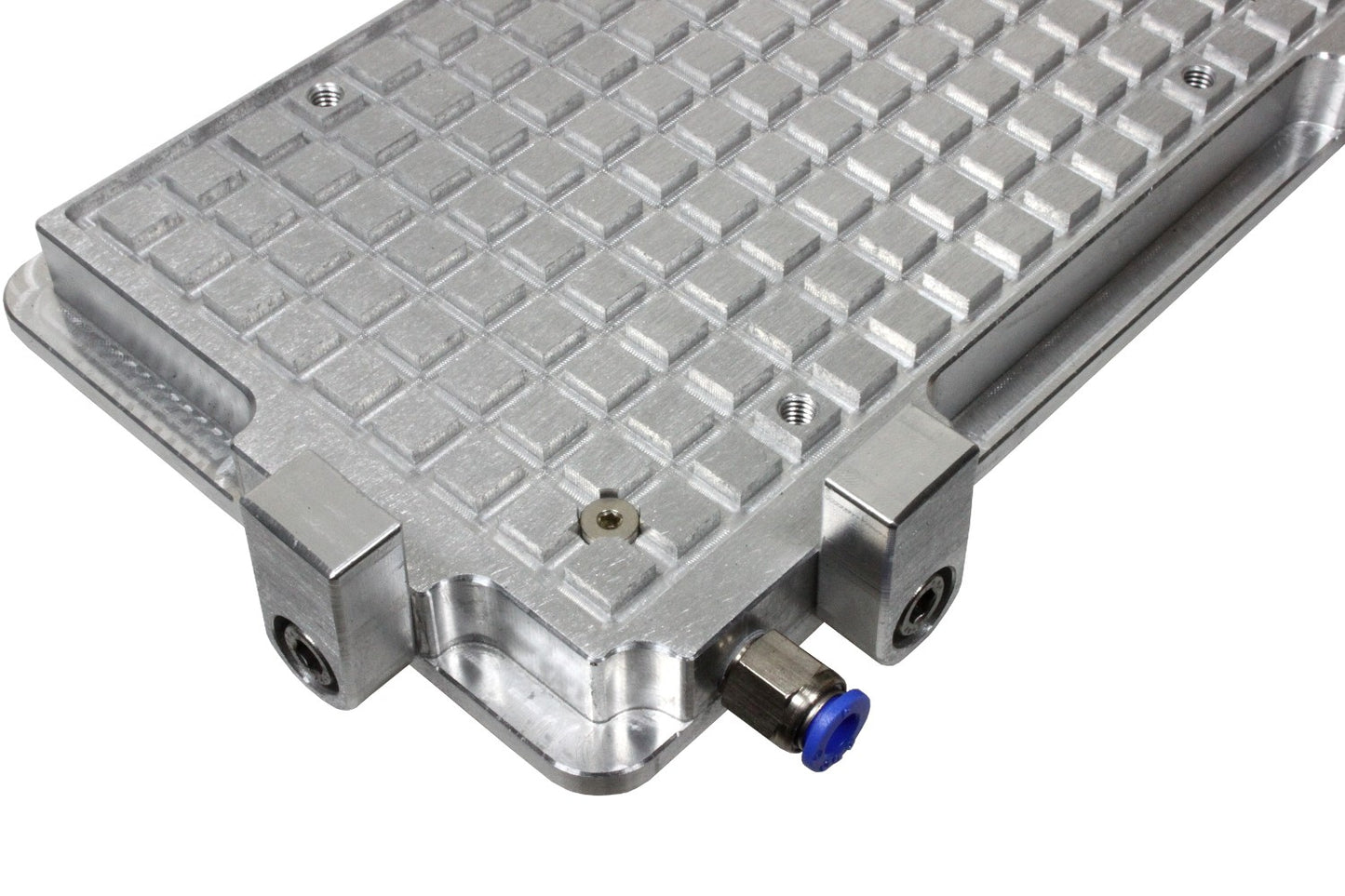

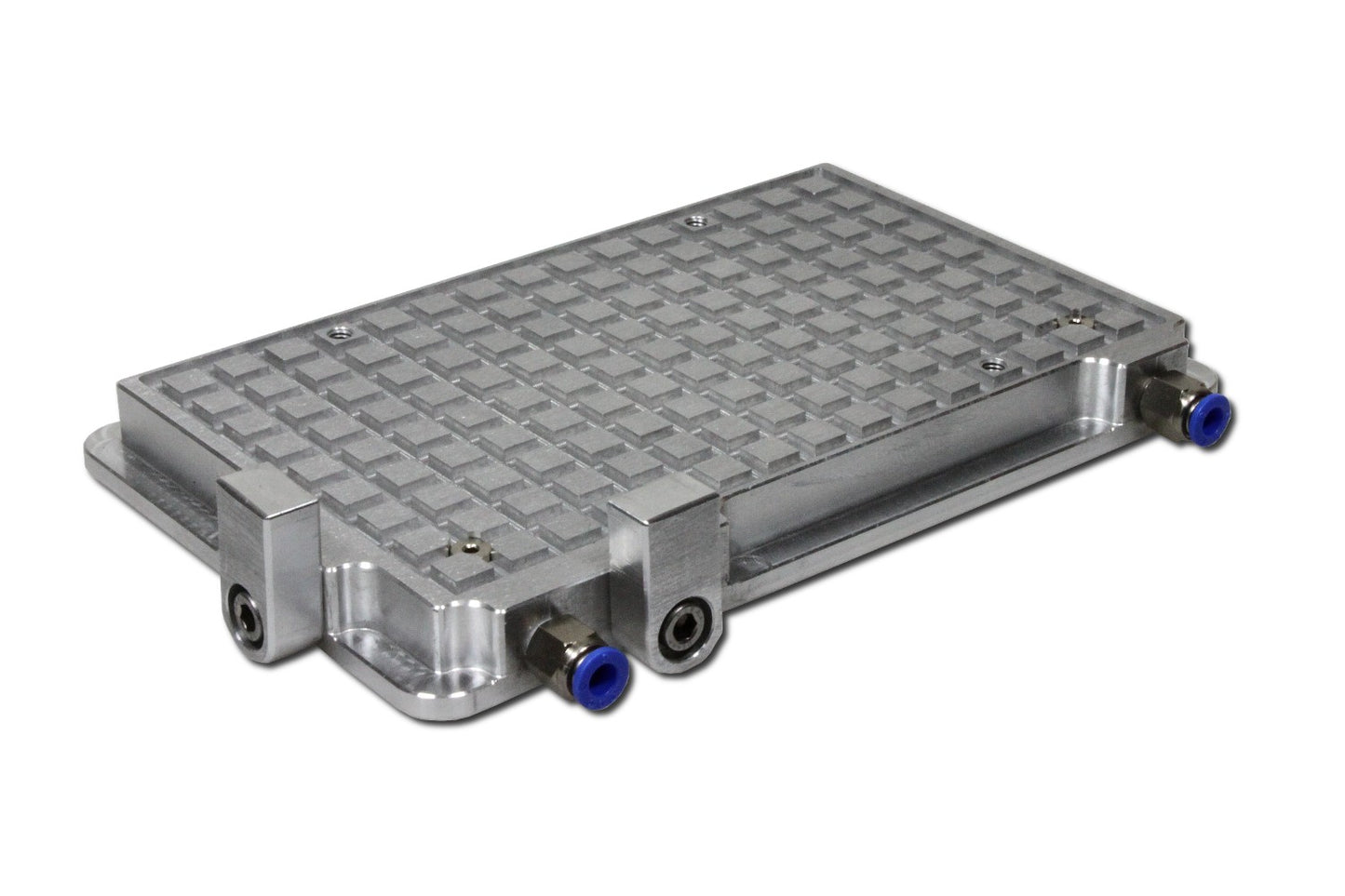

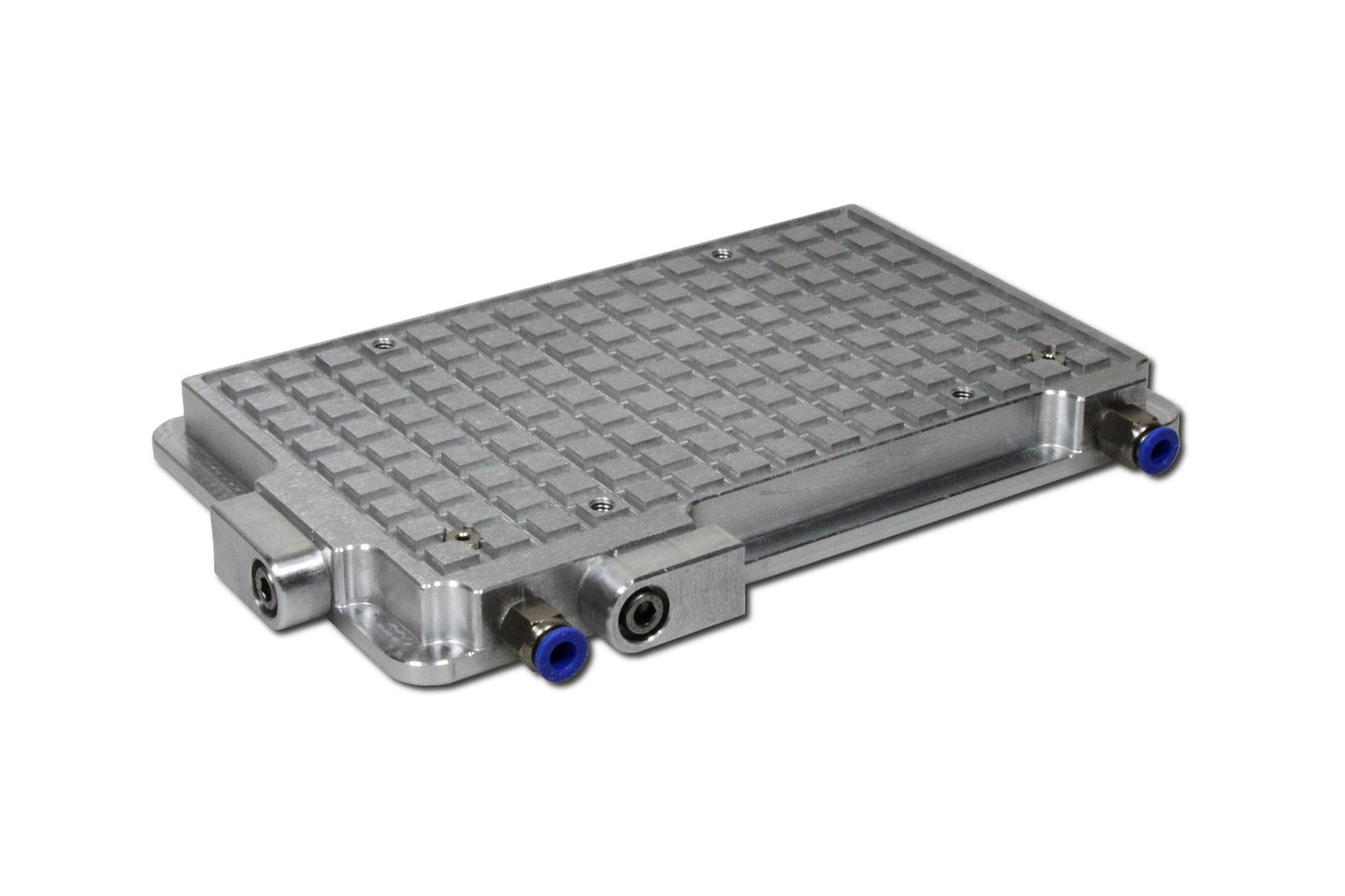

Vacuum table VT2012RAL

• Clamp and mill workpieces fast and easy
• Workpiece stop collars
• 100 x 100 mm M6-thread grid

• Face milled from both sides

• Ready to use. Just mount, connect vacuum and ready.
• Fit for coolant.
• Easy to use.

Technical Data:

• Measure: 216 x 136 x 20 mm
• Clamping area: 200 x 120 mm
• Grid: 12.5 mm
• Vacuum points: 2

• Material: Aluminium
• 8 mm surrounding clamping base

scope of delivery:

• 1 pcs vacuum table VT2012 RAL
• 1 pcs vacuum manifold

• 1 set connection hose
• 1 set foam rubber cord
• 1 pcs PVC adapter mat
