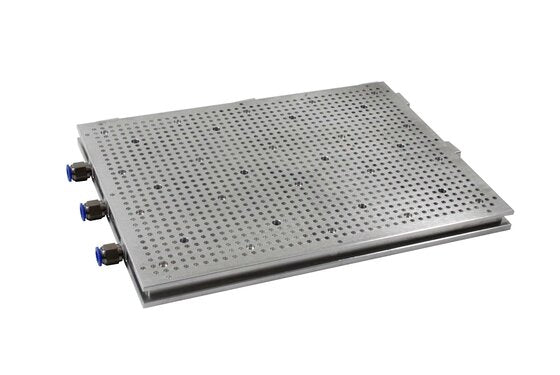

Vacuum table VT4030 GR

Technical data:

• Material: Aluminium

• Measure: 416 x 316 mm
• Clamping area: 416 x 316 mm

• Height: 26 mm

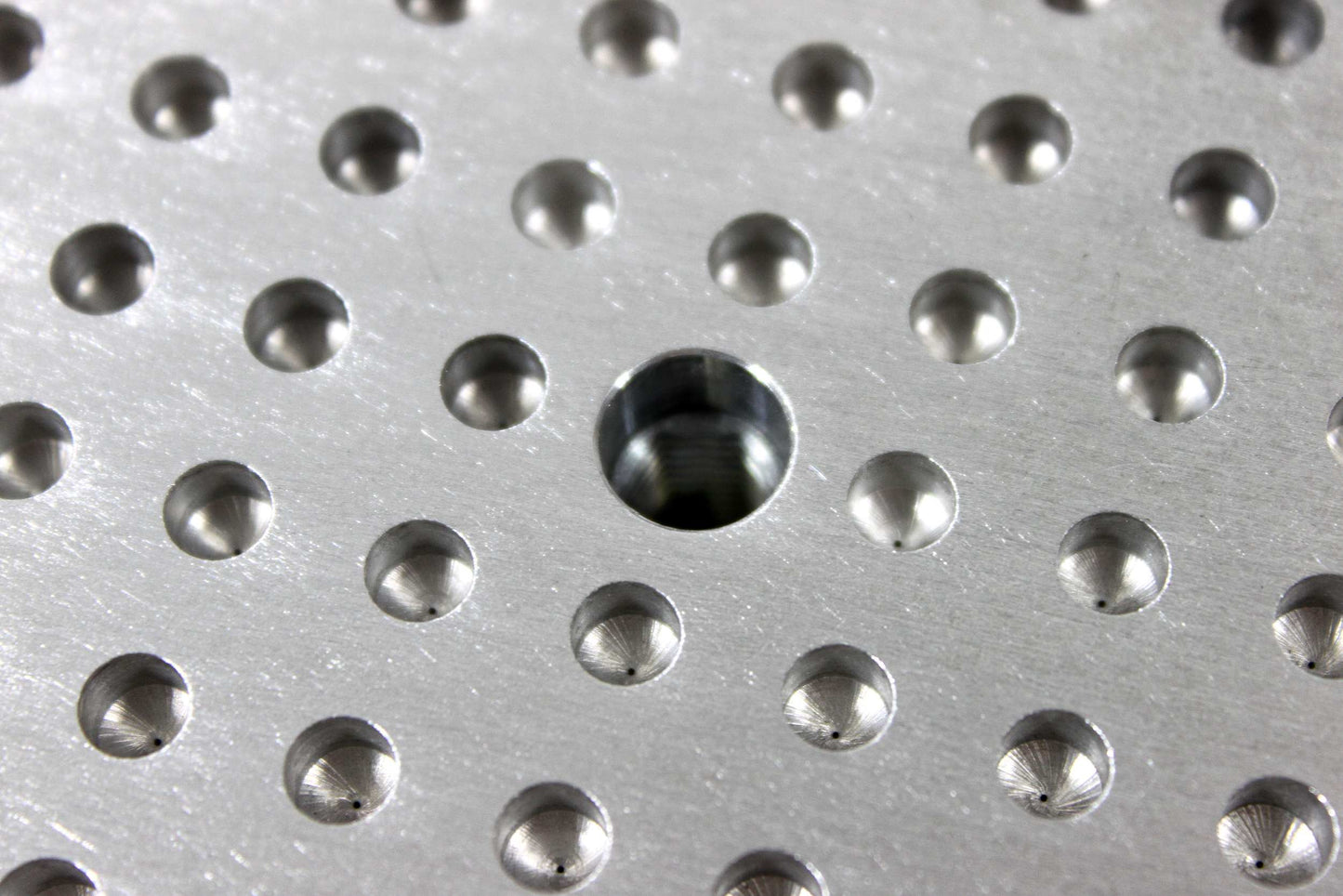

• Drillings: 0,3 mm drill hole

• Grid: 10 x 10 mm
• Thread grid: 100 x 100 mm
• Number M8 bushings: 12

• Connections: 12 mm

• Trimming spare: 4 mm

• Adapter mat: Hole rubber

• surrounding clamping base
• vacuum sectors: 3


Included in delivery:

• vacuum table VT4030 GR

• 1pcs vacuum distributor
• 1pcs hole rubber mat
• 1pcs cover mat
• 1set connection hose

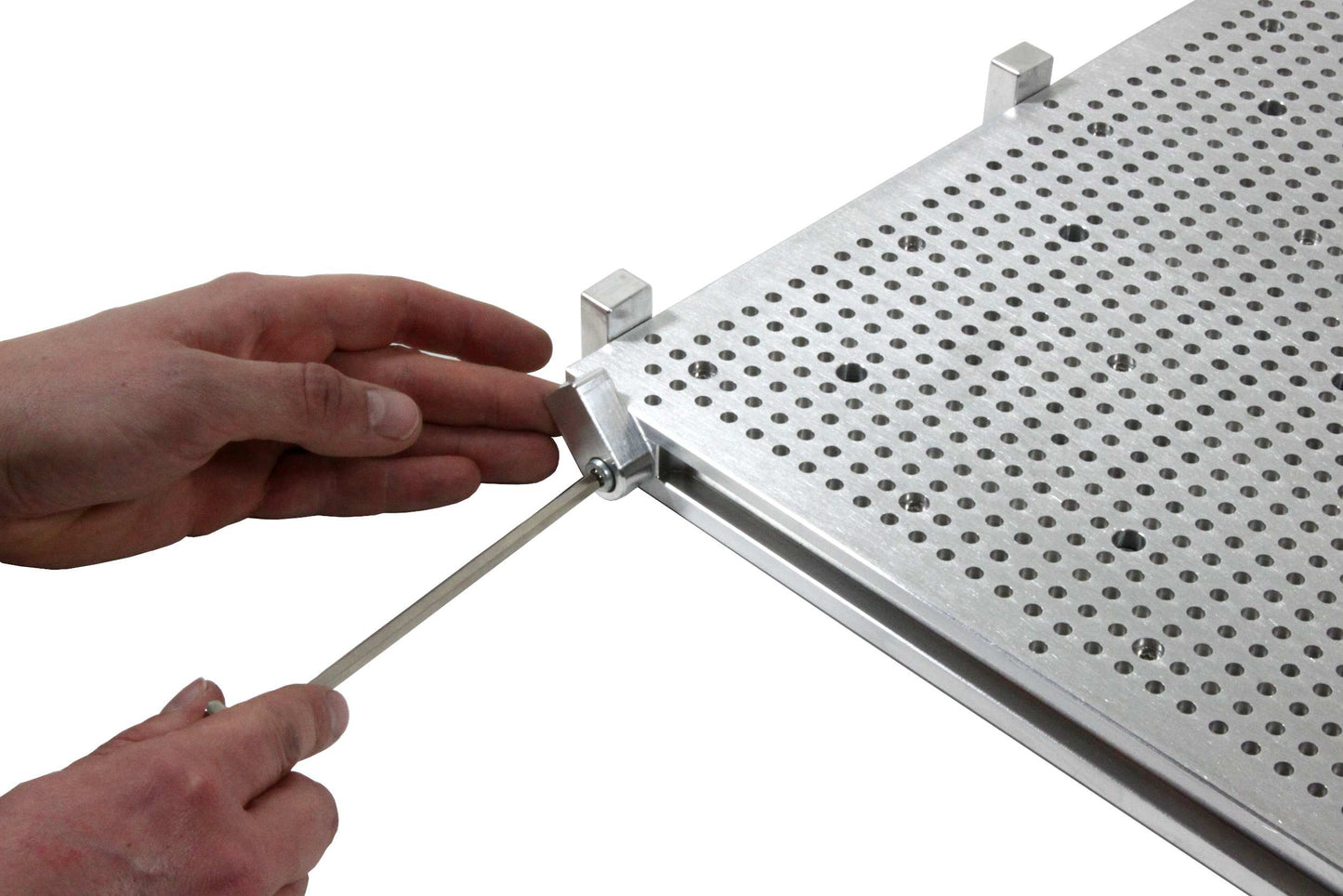

• 4pcs clamp
