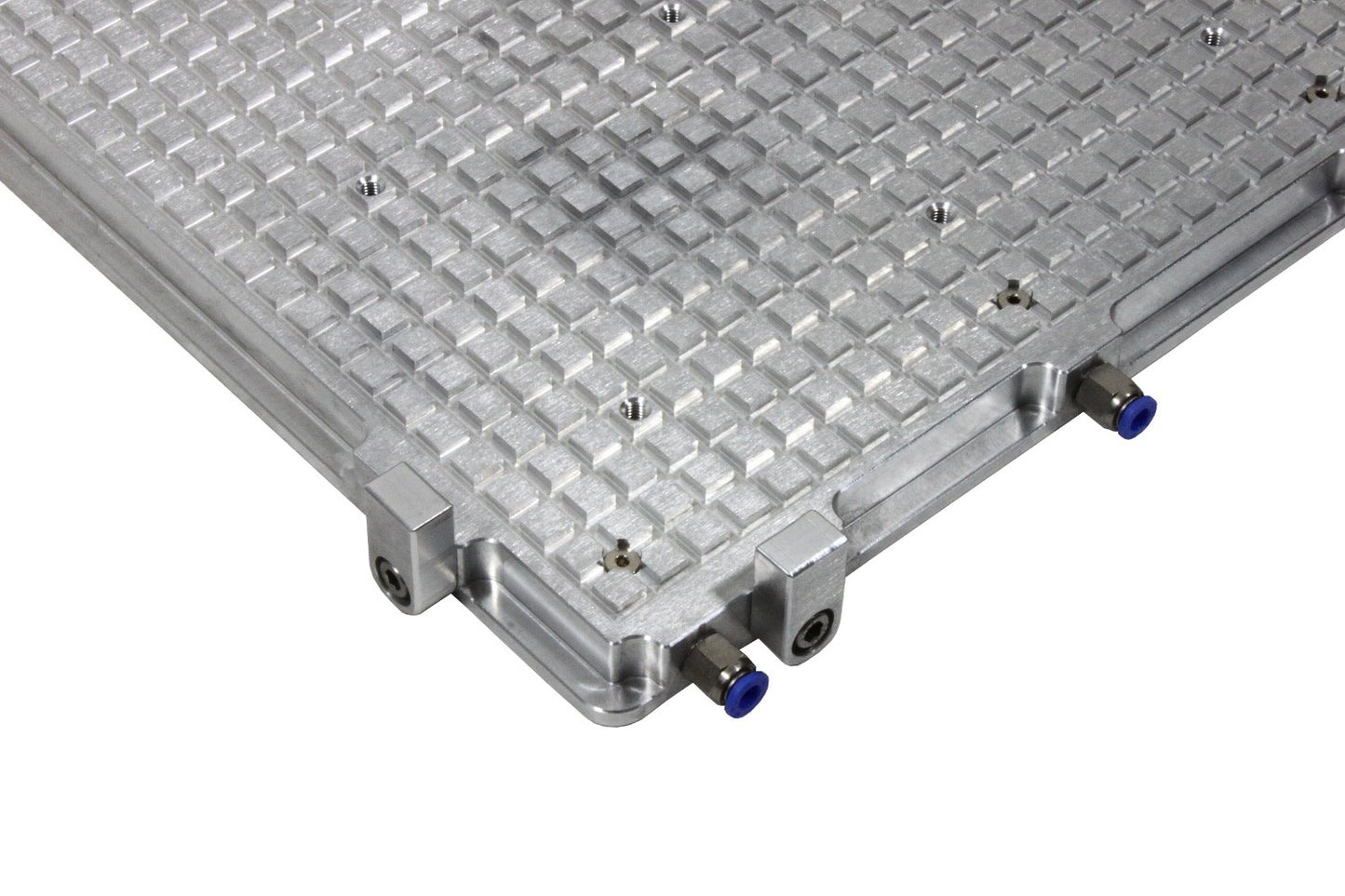

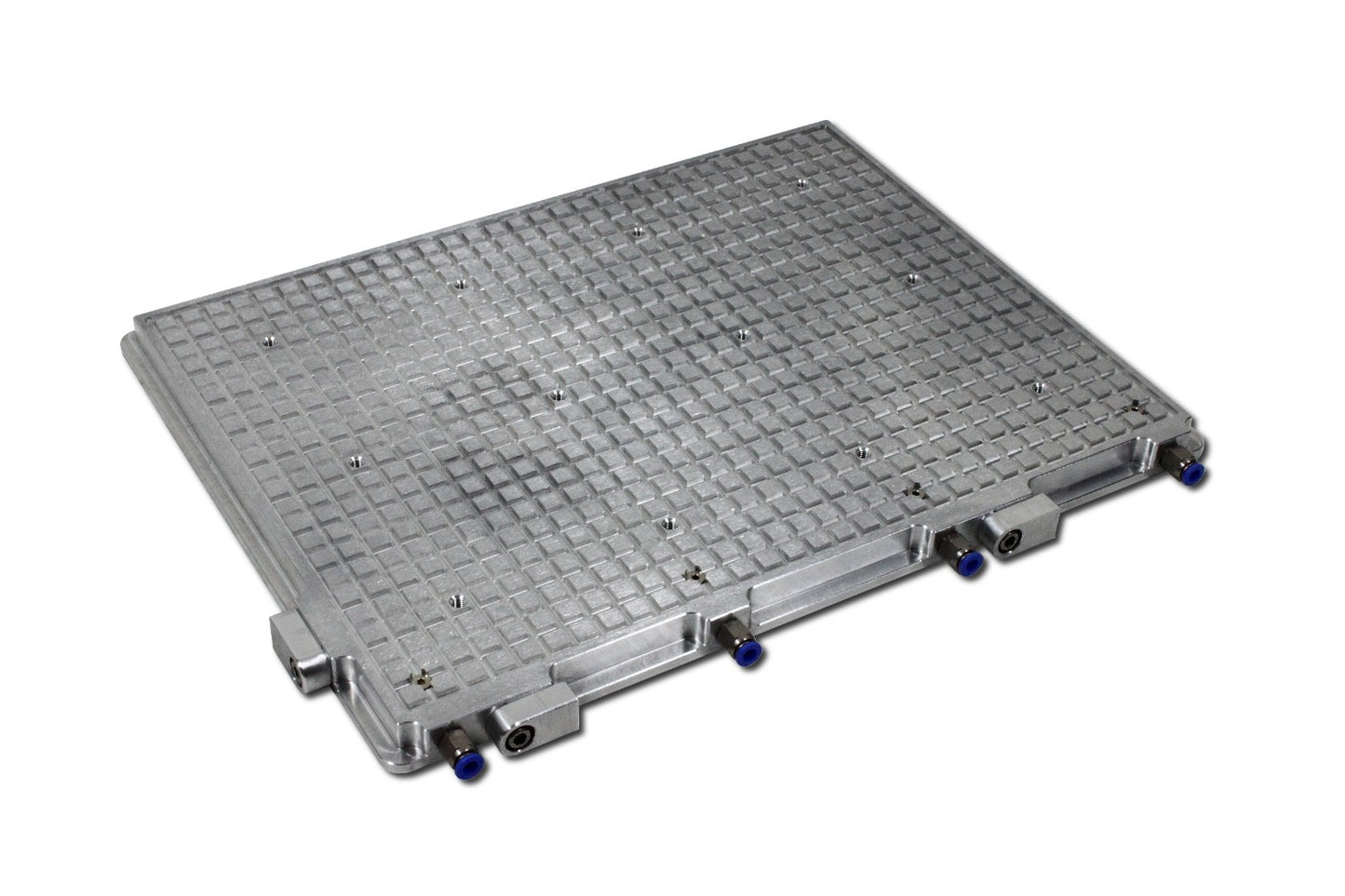

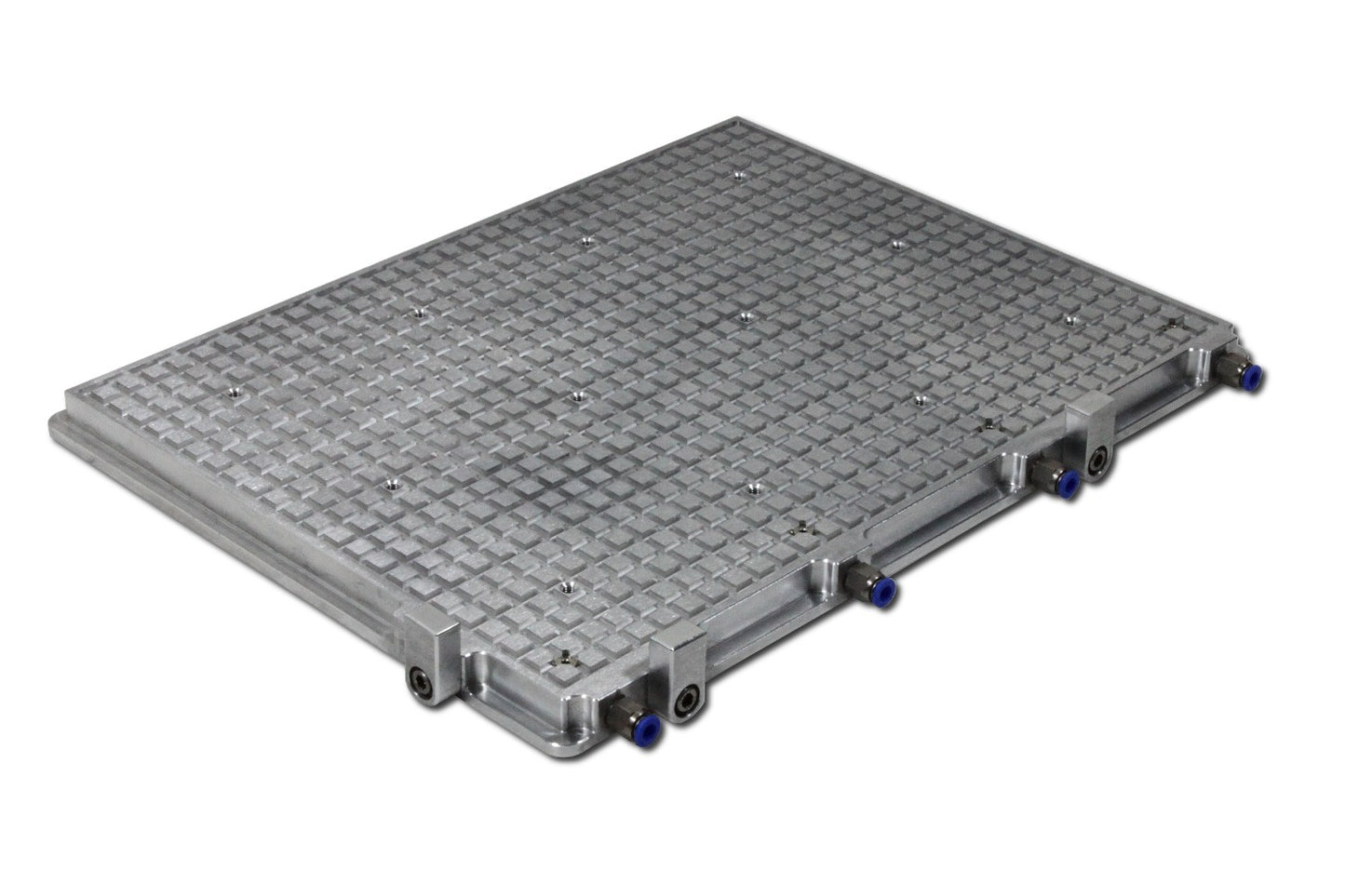

Vacuum table VT4030 RAL

• Clamp and mill workpieces fast and easy
• Workpiece stop collars
• 100 x 100 mm M6-thread grid

• Face milled from both sides

• Ready to use. Just mount, connect vacuum and ready.
• Fit for coolant.
• Easy to use.

Technical Data:

• Measure: 416 x 316 x 20 mm
• Clamping area: 400 x 300 mm
• Grid: 12.5 mm
• Vacuum points: 4

• Material: Aluminium
• 8 mm surrounding clamping base

scope of delivery:

• 1 pcs vacuum table VT4030 RAL
• 1 pcs vacuum manifold

• 1 set connection hose
• 1 set foam rubber cord
• 1 pcs PVC adapter mat
