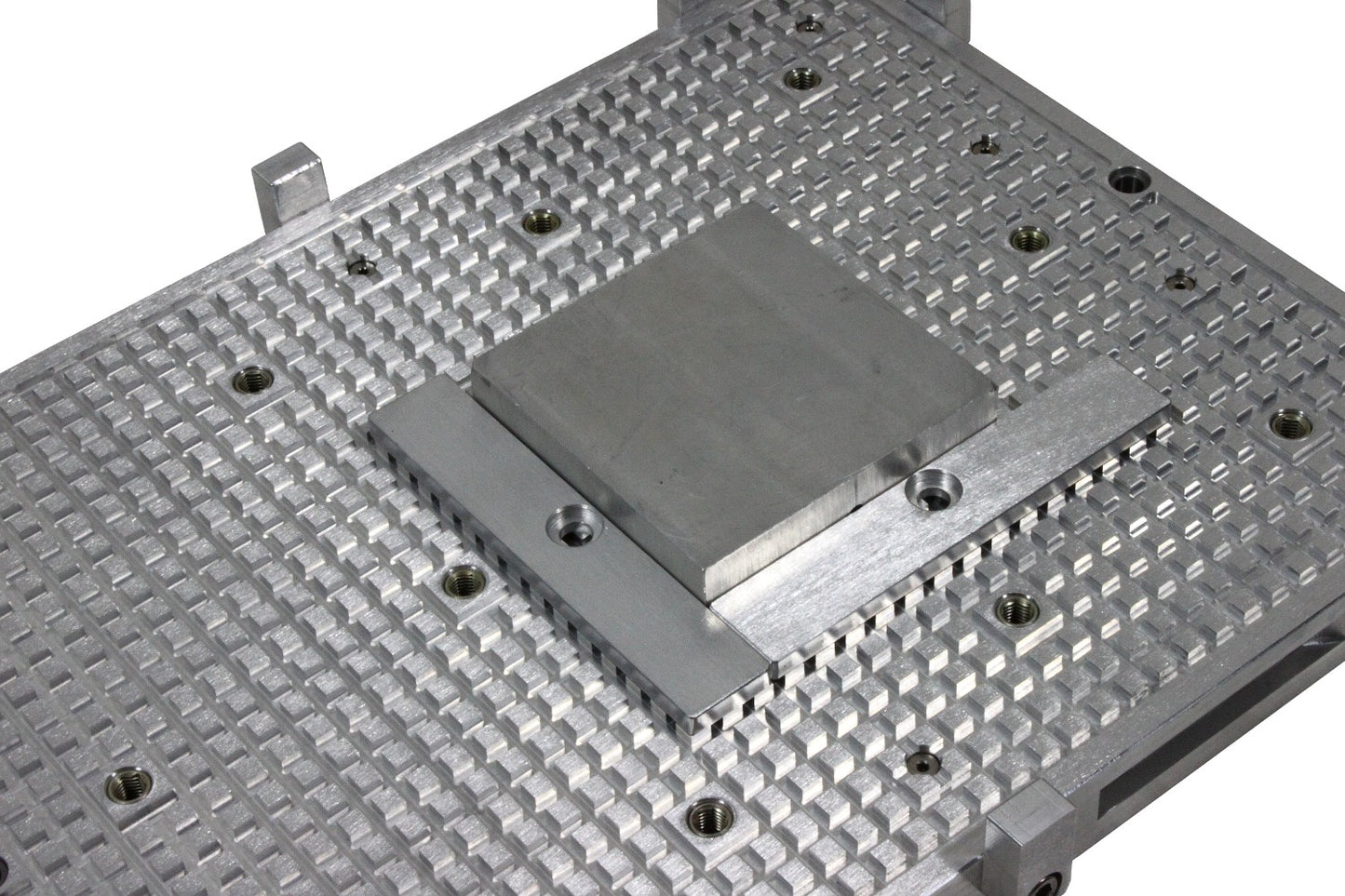

Vacuum table VT5050 RAL-Pro

The attributes in survey:

• Clamp and mill workpieces fast and easy
• Workpiece stop collars
• 100 x 100 mm M8-steel thread grid

• Face milled from both sides

• Ready to use course of included venturi tube

• Fit for coolant.
• Easy to use.

Technical Data:

• Measure: 500 x 500 x 30 mm

• Clamping area: 500 x 500 mm
• Grid: 10 mm
• Vacuum points: 12

• Material: Aluminium

scope of delivery:

• 1 pcs vacuum table VT3030 RAL-Pro
• 1 pcs Venturi tube

• 4 pcs workpiece stop clamps

• 2 pcs workpiece stop bar

• 1 set foam rubber cord
• 1 pcs PVC adapter mat
